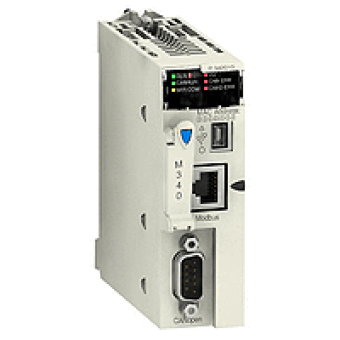

• BMXP3420102 - processor module M340 - max 1024 discrete + 256 analog I/O, Schneider Electric

BMXP3420102 - processor module M340 - max 1024 discrete + 256 analog I/O, Schneider Electric

  • € 709.23 Ex Tax:

MAIN CHARACTERISTICS
range of product
MODICON M340 AUTO PLATFORM
product or component type
PROCESSOR MODULE
number of racks
<= 4
number of slots
11
discrete I/O processor capacity
1024 IO MULTI-RACK CONFIGURATION
analogue I/O processor capacity
256 IO MULTI-RACK CONFIGURATION
number of application specific channel
36
monitoring
DIAGNOSTIC COUNTERS MODBUS
COMPLEMETARY CHARACTERISTICS
control channels
PROGRAMMABLE LOOPS
motion control
INDEPENDENT AXIS CANOPEN
integrated connection type
NON ISOLATED SERIAL LINK RJ45 CHARACTER MODE ASYNCHRONOUS IN BASEBAND RS232C FULL DUPLEX 0.3...19.2 KBITS 2 TWISTED SHIELDED PAIRS
communication module processor capacity
2 ETHERNET COMMUNICATION MODULE
embedded communication service
NETWORK MANAGEMENT NMT CANOPEN
transmission rate
1 MBITS 0..20 M 0..0.6 M
bus type
CANOPEN M20 DS 301 V4.02 DEVICES LINKED BY DAISY-CHAINING OR TAP JUNCTIONS CSMACA
number of slave
63 CANOPEN
number of devices per segment
0..32 CHARACTER MODE
number of devices
2 POINT-TO-POINT CHARACTER MODE
bus length
0...10 M SERIAL LINK NON ISOLATED CHARACTER MODE SEGMENT
tap links length
15 M SERIAL LINK NON ISOLATED CHARACTER MODE SEGMENT
number of addresses
0..248 CHARACTER MODE
requests
1 K DATA BYTES PER REQUEST CHARACTER MODE
control parameter
ONE CRC ON EACH FRAME RTU MODBUS
memory description
SUPPLIED MEMORY CARD BMXRMS008MP FOR BACKUP OF PROGRAMS CONSTANTS SYMBOLS AND DATA
maximum size of object areas
256 KB UNLOCATED INTERNAL DATA
default size of object areas
1024 MWI INTERNAL WORDS LOCATED INTERNAL DATA
application structure
1 CYCLIC PERIODIC MASTER TASK
execution time per instruction
0.12 S BOOLEAN
number of instructions per ms
6.4 KINSTMS 65 BOOLEAN + 35 FIXED ARITHMETIC
system overhead
0.13 MS FAST TASK
current consumption
90 MA 24 V DC
supply
INTERNAL POWER SUPPLY VIA RACK
marking
CE
status LED
1 LED GREEN INTEGRATED MACHINEINSTALLATION BUS OPERATIONAL CAN RUN
product weight
0.21 KG
