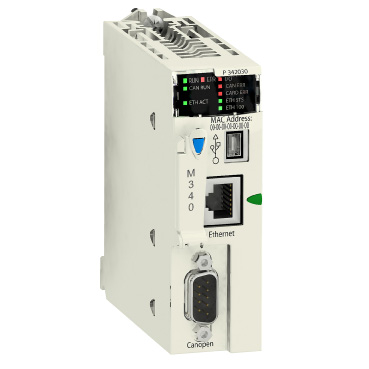

BMXP3420302 - processor module M340 - max 1024 discrete + 256 analog I/O - CANOpen, Schneider Electric
- Product Code: BMXP3420302
- Brand: Schneider Electric
- Availability: To be confirmed
- € 1,025.25 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON M340 AUTO PLATFORM
product or component type
PROCESSOR MODULE
concept
CANOPEN
number of racks
<= 4
number of slots
11
discrete I/O processor capacity
1024 IO MULTI-RACK CONFIGURATION
analogue I/O processor capacity
256 IO MULTI-RACK CONFIGURATION
number of application specific channel
36
COMPLEMETARY CHARACTERISTICS
control channels
PROGRAMMABLE LOOPS
motion control
INDEPENDENT AXIS CANOPEN
integrated connection type
USB PORT 12 MBITS
communication module processor capacity
2 ETHERNET COMMUNICATION MODULE
embedded communication service
NETWORK MANAGEMENT NMT CANOPEN
port Ethernet
10BASE-T 100BASE-TX
transmission rate
1 MBITS 0..20 M 0..0.6 M
bus type
CANOPEN M20 DS 301 V4.02 DEVICES LINKED BY DAISY-CHAINING OR TAP JUNCTIONS CSMACA
number of slave
63 CANOPEN
number of devices per segment
0...16 <= 205 M CANOPEN
memory description
SUPPLIED MEMORY CARD BMXRMS008MP FOR BACKUP OF PROGRAMS CONSTANTS SYMBOLS AND DATA
maximum size of object areas
256 KB UNLOCATED INTERNAL DATA
default size of object areas
1024 MWI INTERNAL WORDS LOCATED INTERNAL DATA
application structure
1 CYCLIC PERIODIC MASTER TASK
execution time per instruction
0.12 S BOOLEAN
number of instructions per ms
6.4 KINSTMS 65 BOOLEAN + 35 FIXED ARITHMETIC
system overhead
0.13 MS FAST TASK
current consumption
135 MA 24 V DC
supply
INTERNAL POWER SUPPLY VIA RACK
marking
CE
status LED
1 LED GREEN ACTIVITY ON ETHERNET NETWORK ETH ACT
product weight
0.215 KG
