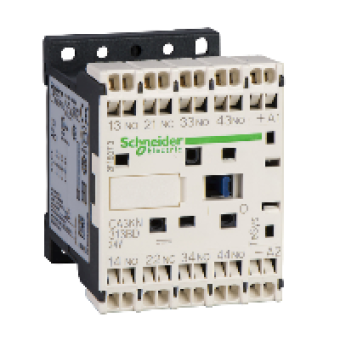

CA4KN403BW3 - TeSys K control relay - 4 NO - <= 690 V - 24 V DC low consumption coil, Schneider Electric
- Product Code: CA4KN403BW3
- Brand: Schneider Electric
- Availability: To be confirmed
- € 23.43 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS K CONTROL RELAY
range
TESYS
product name
TESYS CAK
product or component type
CONTROL RELAY
device short name
CA4K
contactor application
CONTROL CIRCUIT
utilisation category
AC-15
pole contact composition
4 NO
[Ue] rated operational voltage
<= 690 V <= 400 HZ
control circuit type
DC LOW CONSUMPTION
[Uc] control circuit voltage
24 V DC
COMPLEMETARY CHARACTERISTICS
coil technology
BUILT-IN BIDIR PEAK LMTG SPSR
[Ith] conventional free air thermal current
10 A AT <= 50 DC
Irms rated making capacity
110 A CONFORMING TO IEC 60947
associated fuse rating
10 A GG CONFORMING TO IEC 60947
[Ui] rated insulation voltage
690 V CONFORMING TO IEC 60947
mounting support
PLATE
connections - terminals
SPRING TERMINALS 1 CABLES 0.75...1.5 MM - CABLE STIFFNESS SOLID
control circuit voltage limits
0.1...0.75 UC AT 50 C DROP-OUT
operating time
10...20 MS COIL DE-ENERGISATION AND NO OPENING
mechanical durability
30 MCYCLES
operating rate
6000 CYCH
immunity to microbreaks
2 MS
inrush power in W
1.8 W AT 20 DC
hold-in power consumption in W
1.8 W AT 20 DC
heat dissipation
1.8 W
minimum switching voltage
17 V
minimum switching current
5 MA
non overlap distance
0.5 MM
insulation resistance
> 10 MOHM
height
58 MM
width
45 MM
depth
57 MM
product weight
0.235 KG
compatibility code
CA4K
