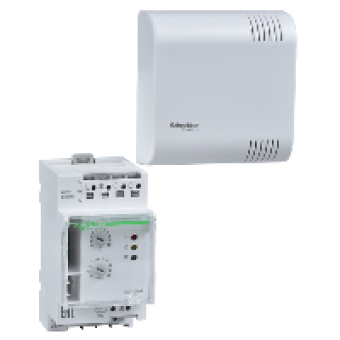

CCT15841 - Acti 9 - TH4 - thermostat - 1 zone - +8 °C to +26 °C, Schneider Electric
- Product Code: CCT15841
- Brand: Schneider Electric
- Availability: To be confirmed
- € 103.95 Ex Tax:
MAIN CHARACTERISTICS
range of product
ACTI 9
range of product
ACTI 9
product name
ACTI 9 TH
product or component type
THERMOSTAT
device short name
TH4
number of zones
1
provided equipment
SPLD W AMB TEMPERATURE PROBE
COMPLEMETARY CHARACTERISTICS
operating mode
ABOVE FREEZING 5 DC
measurement accuracy
+- 0.2 DC
power consumption in VA
<= 4 VA
maximum switching current
16 A - 250 V PF = 1
[Ue] rated operational voltage
230 V AC +- 10
protection type
OVER VLTG PROT AGAINST SURGES
status LED
RED INDICATOR LIGHT MAKE POSITION OF THE OUTPUT CONTACTS
mounting support
DIN RAIL
9 mm pitches
5
connections - terminals
SCREWLESS TERMINALS 2 CABLES <= 2.5 MM
colour tint
WHITE RAL 9003
height
85 MM
width
45 MM
depth
65 MM
market segment
SMALL COMMERCIAL
compatibility code
TH4
The Schneider Electric CCT15841 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
