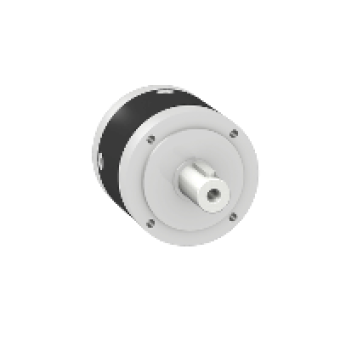

GBX080040K - gearbox straight teeth GBX - Ø 80 mm - reduction 40:1 < 9 arc.min - 110 N.m, Schneider Electric
- Product Code: GBX080040K
- Brand: Schneider Electric
- Availability: To be confirmed
- € 382.82 Ex Tax:
MAIN CHARACTERISTICS
range compatibility
LEXIUM 32
product or component type
PLANETARY GEARBOX
gear box type
STRAIGHT TEETH
device short name
GBX
product compatibility
BMH 70 MM 1 MOTOR STACKS
gearbox external diameter
80 MM
reduction ratio
40 1
COMPLEMETARY CHARACTERISTICS
torsional backlash
< 9 ARC.MIN
torsional rigidity
6.5 N.M ARCMIN
housing colour
BLACK
housing material
BLACK ANODIZED ALUMINIUM
shaft material
C 45
additional information
LUBRICATED LIFE
service life in hours
30000 H AT 100 RPM AT 30 DC
mounting position
ANY POSITION
efficiency
94
maximum radial force Fr
650 N AT 100 RPM FORCE APPLIED AT MID-DISTANCE FROM OUTPUT SHAFT DURING 30000 HOUR AT 30 C
maximum axial force Fa
1200 N AT 100 RPM DURING 30000 HOUR AT 30C
moment of inertia
0.39 KG.CM
continuous output torque
110 N.M AT 100 RPM AT 30 DC
maximum output torque
176 N.M AT 100 RPM AT 30 DC
product weight
2.6 KG
no load running torque
0.1 N.M
reduction ratio
40
compatibility code
GBX
