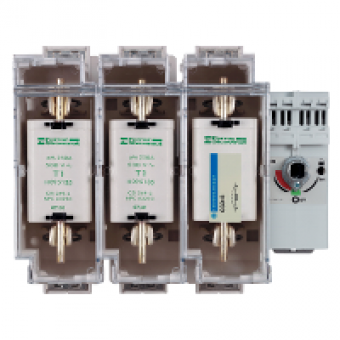

GS2N3 - TeSys GS - switch-disconnector-fuse - 3 P - 250A - DIN 1, Schneider Electric
- Product Code: GS2N3
- Brand: Schneider Electric
- Availability: To be confirmed
- € 234.22 Ex Tax:
MAIN CHARACTERISTICS
range
TESYS
product name
TESYS GS
device short name
GS2N
product or component type
SWITCH-DISCONNECTOR-FUSE
poles description
3P
protected poles description
3T
contacts type and composition
3 NO
[Ith] conventional free air thermal current
250 A AT 40 DC
[Ie] rated operational current
200 A at 440 V 2 poles in series per phase on DC-23A
fuse type
DIN
fuse size
1
network type
AC
network frequency
50 60 HZ
COMPLEMETARY CHARACTERISTICS
type of operating handle
EXTERNAL FRONTAL
mounting support
PLATE
[Ui] rated insulation voltage
750 V AC
[Uimp] rated impulse withstand voltage
8 KV
rated operational power in W
132 kW at 400 V
making capacity
2500 A at 400 V on AC-23B
[Icm] rated short-circuit making capacity
100 KA AT 400 V WITH PROTECTION BY GG FUSES
breaking capacity
2000 A at 400 V on AC-23B
short-circuit withstand
32.5 KA
mechanical durability
10000 CYCLES
electrical durability
on AC-23A
connections - terminals
power circuit : bars cable 32 mm²
tightening torque
power circuit : 25 N.m
compatibility code
GS2N
