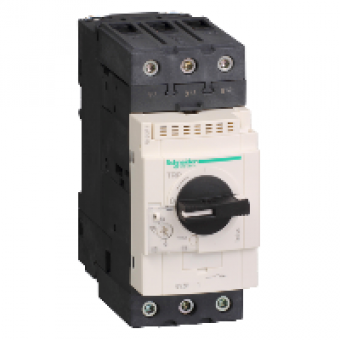

GV3P50 - TeSys GV3-Circuit breaker-thermal-magnetic - 37…50A - EverLink BTR connectors, Schneider Electric
- Product Code: GV3P50
- Brand: Schneider Electric
- Availability: To be confirmed
- € 116.00 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS GV3
range
TESYS
product name
TESYS GV3
device short name
GV3P
product or component type
CIRCUIT BREAKER
device application
MOTOR
trip unit technology
THERMAL-MAGNETIC
COMPLEMETARY CHARACTERISTICS
poles description
3P
network type
AC
utilisation category
AC-3 CONFORMING TO IEC 60947-4-1
network frequency
5060 HZ CONFORMING TO IEC 60947-4-1
mounting mode
BY CLIPS
mounting support
PLATE
mounting position
HORIZONTAL
motor power kW
22 KW AT 400415 V AC 5060 HZ
breaking capacity
100 KA ICU AT 230240 V AC 5060 HZ CONFORMING TO IEC 60947-2
[Ics] rated service short-circuit breaking capacity
100 AT 230240 V AC 5060 HZ CONFORMING TO IEC 60947-2
control type
ROTARY KNOB
[In] rated current
37...50 A
thermal protection adjustment range
37...50 A
magnetic tripping current
700 A
[Ue] rated operational voltage
690 V AC 5060 HZ CONFORMING TO IEC 60947-2
[Ui] rated insulation voltage
690 V AC 5060 HZ CONFORMING TO IEC 60947-2
[Ith] conventional free air thermal current
50 A CONFORMING TO IEC 60947-4-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947-2
power dissipation per pole
8 W
mechanical durability
50000 CYCLES
electrical durability
50000 CYCLES FOR AC-3 AT 440 V IN
operating rate
25 CYCH
rated duty
CONTINUOUS CONFORMING TO IEC 60947-4-1
direct connector
WITHOUT
connections - terminals
EVERLINK BTR SCREW CONNECTORS 2 CABLES 1...25 MM - CABLE STIFFNESS SOLID
tightening torque
5 N.M - ON EVERLINK BTR SCREW CONNECTORS- CABLE 25 MM
suitability for isolation
YES CONFORMING TO IEC 60947-1
phase failure sensitivity
YES CONFORMING TO IEC 60947-4-1
height
132 MM
width
55 MM
depth
136 MM
product weight
0.96 KG
compatibility code
GV3P
