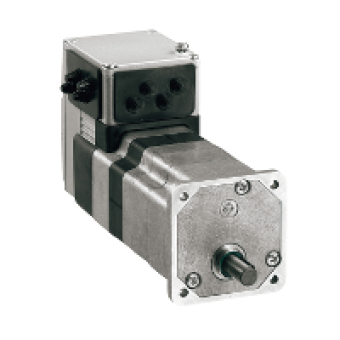

ILE1F661PB1A0 - brushless dc motor 24..36 V - CANopen DS301 interface - L = 122 mm - w/o gearbox, Schneider Electric
- Product Code: ILE1F661PB1A0
- Brand: Schneider Electric
- Availability: To be confirmed
- € 538.88 Ex Tax:
MAIN CHARACTERISTICS
range of product
LEXIUM INTEGRATED DRIVE
product or component type
MOTION INTEGRATED DRIVE
device short name
ILE
motor type
BRUSHLESS DC MOTOR
number of motor poles
6
network number of phases
SINGLE PHASE
[Us] rated supply voltage
24 V
network type
DC
communication interface
INTEGRATED CANOPEN DS301
length
122 MM
winding type
M SPEED OF ROTATION + M TORQUE
electrical connection
PRINTED CIRCUIT BOARD CONN
holding brake
WITHOUT
gear box type
WITHOUT
reduction ratio
1 1
nominal speed
4000 RPM AT 24 V
nominal torque
0.175 N.M AT 24 V
COMPLEMETARY CHARACTERISTICS
transmission rate
50100125..800+1000 KBAUDS
mounting support
FLANGE
motor flange size
66 MM
number of motor stacks
1
centring collar diameter
40 MM
centring collar depth
2 MM
number of mounting holes
4
mounting holes diameter
4.4 MM
circle diameter of the mounting holes
73.54 MM
feedback type
BLDC ENCODER
shaft end
UNTAPPED
second shaft
WITHOUT SECOND SHAFT END
shaft diameter
8 MM
shaft length
25 MM
supply voltage limits
18...40 V
current consumption
7000 MA PEAK
associated fuse rating
10 A
input/output type
4 SIGNALS EACHUSED AS I P O P
voltage state 0 guaranteed
-3...4.5 V
voltage state 1 guaranteed
15...30 V
discrete input current
<= 10 MA AT 24 V ONSTO A FOR SAFETY INPUT
discrete output voltage
23...25 V
maximum switching current
100 MA PER OUTPUT
protection type
OVERLOAD OF OUTPUT VOLTAGE
supply current
SUPPLY 0.06 A 36 V POWER STAGE DISABLED
nominal output power
117 W AT 36 V
peak stall torque
0.26 N.M AT 24 V
continuous stall torque
0.27 N.M
detent torque
0.08 N.M
speed feedback resolution
12 POINTSTURN
accuracy error
+ - 1 D
rotor inertia
0.149 KG.CM
maximum mechanical speed
5000 RPM
maximum radial force Fr
80 N
maximum axial force Fa
30 N FORCE PRESSURE
service life in hours
20000 h of bearing :
marking
CE
type of cooling
NATURAL CONVECTION
product weight
1.4 KG
sizing reference
ILE1 661 A0
supply voltage description
SINGLE PHASE 24 V DC
network number of phases
1
coefficient M0
8E-06 N.MRPM
coefficient M0 max
8E-06 N.MRPM
voltage 1
24 V
voltage 1 speed 1
3208.955 RPM
voltage 1 speed 1 max
3208.955 RPM
coefficient 1_0
0.485 N.M
coefficient 1_1
-7.5E-05 N.MRPM
voltage 2
36 V
voltage 2 speed 2
3208.955 RPM
voltage 2 speed 2 max
3208.956 RPM
coefficient 2_0
0.27 N.M
coefficient 2_1
-8E-06 N.MRPM
curve type
LIN
accuracy error [angular]
1
compatibility code
ILE
