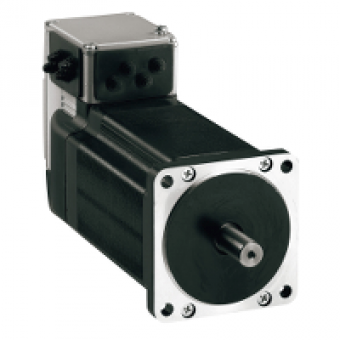

ILS1F853TC1A0 - integrated drive ILS with stepper motor - 24..36 V - CANopen DS301 - 6 A, Schneider Electric
- Product Code: ILS1F853TC1A0
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
LEXIUM INTEGRATED DRIVE
product or component type
MOTION INTEGRATED DRIVE
device short name
ILS
motor type
3-PHASE STEPPER MOTOR
number of motor poles
6
network number of phases
SINGLE PHASE
[Us] rated supply voltage
24 V
network type
DC
communication interface
INTEGRATED CANOPEN DS301
length
200.6 MM
winding type
HIGH SPEED OF ROTATION + M TQ
electrical connection
INDUSTRIAL CONNECTOR
holding brake
WITHOUT
gear box type
WITHOUT
nominal speed
100 RPM AT 24 V
nominal torque
4.5 N.M
holding torque
4.5 N.M
COMPLEMETARY CHARACTERISTICS
transmission rate
50100125..800+1000 KBAUDS
mounting support
FLANGE 85 MM
motor flange size
85 MM
number of motor stacks
3
centring collar diameter
60 MM
centring collar depth
2 MM
number of mounting holes
4
mounting holes diameter
6.5 MM
circle diameter of the mounting holes
99 MM
feedback type
INDEX PULSE
shaft end
UNTAPPED
second shaft
WITHOUT SECOND SHAFT END
shaft diameter
14 MM
shaft length
30 MM
supply voltage limits
18...40 V
current consumption
6000 MA MAXIMUM
associated fuse rating
10 A
input/output type
4 SIGNALS EACHUSED AS I P O P
voltage state 0 guaranteed
-3...4.5 V
voltage state 1 guaranteed
15...30 V
discrete input current
<= 10 MA AT 24 V ONSTO A FOR SAFETY INPUT
discrete output voltage
23...25 V
maximum switching current
100 MA PER OUTPUT
protection type
OVERLOAD OF OUTPUT VOLTAGE
peak stall torque
4.5 N.m
continuous stall torque
4.5 N.M
speed feedback resolution
20000 POINTSTURN
accuracy error
+ - 6 ARC MIN
rotor inertia
3.3 KG.CM
maximum mechanical speed
2000 RPM
maximum radial force Fr
110 N
maximum axial force Fa
170 N TENSILE FORCE
service life in hours
20000 h of bearing :
marking
CE
type of cooling
NATURAL CONVECTION
product weight
4.7 KG
sizing reference
ILS1 853T
supply voltage description
SINGLE PHASE 24 V DC
network number of phases
1
voltage 1
24 V
voltage 1 speed 1
112.33 RPM
voltage 1 speed 1 max
112.33 RPM
coefficient 1_0
68.379 N.M
coefficient 1_1
-62.24 N.MRPM
coefficient 1_2
19.385 N.MRPM
coefficient 1_3
-2.06 N.MRPM3
voltage 2
36 V
voltage 2 speed 2
284.734 RPM
voltage 2 speed 2 max
284.734 RPM
coefficient 2_0
15.083 N.M
coefficient 2_1
3.756 N.MRPM
coefficient 2_2
-5.664 N.MRPM
coefficient 2_3
0.968 N.MRPM3
curve type
SEMILOG
accuracy error [angular]
0.1
compatibility code
ILS
