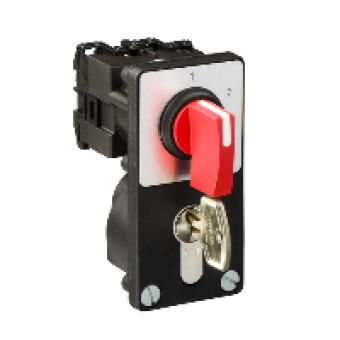

K1C003NZ2 - cam stepping switch - 1-pole - 60 ° - 12 A - front mounting - red handle, Schneider Electric
- Product Code: K1C003NZ2
- Brand: Schneider Electric
- Availability: To be confirmed
- € 147.84 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY K
product or component type
COMPLETE CAM SWITCH
component name
K1
[Ith] conventional free air thermal current
12 A
product mounting
FRONT MOUNTING
fixing mode
6 SCREWS DM 5.2 MM
cam switch head type
WITH FRONT PLATE 55 X 100 MM
type of operator
RED HANDLE
rotary handle padlocking
WITH
presentation of legend
WITH METALLIC LEGEND 1 - 2 - 3 BLACK MARKING
cam switch function
STEPPING SWITCH
return
WITHOUT
off position
WITHOUT
poles description
1P
switching positions
RIGHT 0 D - 60 D - 120 D
IP degree of protection
IP40 CONFORMING TO IEC 529
COMPLEMETARY CHARACTERISTICS
number of steps
3
switching angle
60
[Ui] rated insulation voltage
690 V DEGREE OF POLLUTION 3 CONFORMING TO IEC 60947-1
[Ithe] conventional enclosed thermal current
10 A
rated operational power in W
10500 W AC-21 / 500...660 V 3 phases conforming to IEC 60947-3
[Ie] rated operational current AC
1 A AT 500 V AC-15 CONFORMING TO IEC 60947-5-1
electrical durability
1000000 CYCLES AC-15
operating rate
8333 CYCMN AC-15
short-circuit current
10000 A
short-circuit protection
16 A BY CARTRIDGE FUSE TYPE GG
[Uimp] rated impulse withstand voltage
4 KV IN ISOLATING FUNCTION
contact operation
SLOW-BREAK
positive opening
WITH
electrical connection
CAPTIVE SCREW CLAMP TERMINALS FLEXIBLE 2 X 1.5 MM
mechanical durability
1000000 CYCLES
CAD overall width
55 MM
CAD overall height
100 MM
CAD overall depth
63 MM
product weight
0.17 KG
compatibility code
K1C
