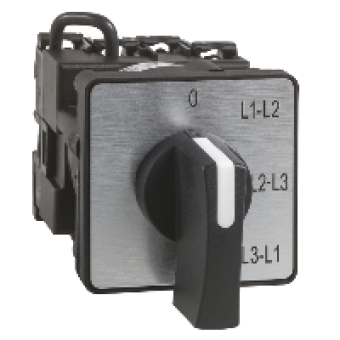

K2D024MLH - lp cam switch, Schneider Electric
- Product Code: K2D024MLH
- Brand: Schneider Electric
- Availability: To be confirmed
- € 9.91 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY K
product or component type
COMPLETE CAM SWITCH
component name
K1
[Ith] conventional free air thermal current
20 A
mounting location
FRONT
fixing mode
MULTIFIXING
cam switch head type
WITH FRONT PLATE 45 X 45 MM
type of operator
BLACK HANDLE LENGTH = 35 MM
rotary handle padlocking
WITHOUT
presentation of legend
WITH METALLIC LEGEND 0 - L1L2 - L2L3 - L3L1 BLACK MARKING
cam switch function
VOLTMETER SWITCH
return
WITHOUT
type of measurement
BETWEEN 3 PHASES OF 2 SUPPLIES
off position
WITH
switching positions
RIGHT 0 D-45 D-90 D-135 D
IP degree of protection
IP40 CONFORMING TO IEC 529
COMPLEMETARY CHARACTERISTICS
switching angle
45
[Ui] rated insulation voltage
690 V DEGREE OF POLLUTION 3 CONFORMING TO IEC 60947-1
[Ithe] conventional enclosed thermal current
16 A
electrical durability
500000 CYCLES AC-3
operating rate
8.333 CYCMN AC-15
mechanical durability
1000000 CYCLES
CAD overall width
45 MM
CAD overall height
45 MM
CAD overall depth
107 MM
product weight
0.205 KG
compatibility code
K1H
