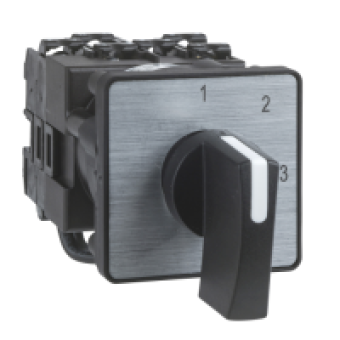

K2E003WLH - cam changeover switch - 3 poles - 20 A - front mounting, Schneider Electric
- Product Code: K2E003WLH
- Brand: Schneider Electric
- Availability: To be confirmed
- € 15.64 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY K
product or component type
COMPLETE CAM SWITCH
component name
K2
[Ith] conventional free air thermal current
20 A
product mounting
FRONT MOUNTING
fixing mode
MULTIFIXING
presentation of legend
WITH METALLIC LEGEND 1 - 0 - 2 BLACK MARKING
cam switch function
CHANGEOVER SWITCH
off position
WITH
switching positions
0-45 D-315 D
IP degree of protection
IP40 CONFORMING TO IEC 529
COMPLEMETARY CHARACTERISTICS
[Ui] rated insulation voltage
690 V DEGREE OF POLLUTION 3 CONFORMING TO IEC 60947-1
[Ithe] conventional enclosed thermal current
16 A
electrical durability
200000 CYCLES AC-23
operating rate
2.5 CYCMN AC-21
short-circuit current
10000 A
short-circuit protection
20 A BY CARTRIDGE FUSE TYPE GG
[Uimp] rated impulse withstand voltage
4 KV IN ISOLATING FUNCTION
contact operation
SLOW-BREAK
positive opening
WITH
electrical connection
CAPTIVE SCREW CLAMP TERMINALS FLEXIBLE 2 X 1.5 MM
mechanical durability
1000000 CYCLES
compatibility code
K2E
