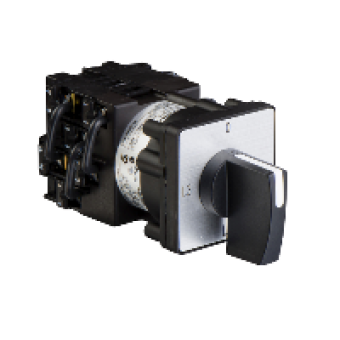

K2F003MLH - lp cam switch, Schneider Electric
- Product Code: K2F003MLH
- Brand: Schneider Electric
- Availability: To be confirmed
- € 14.27 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY K
product or component type
COMPLETE CAM SWITCH
component name
K2
[Ith] conventional free air thermal current
20 A
sub-assembly composition
CONTACT BLOCK + FRONT MOUNTING
mounting location
FRONT
fixing mode
MULTIFIXING
cam switch head type
WITH FRONT PLATE 45 X 45 MM
type of operator
BLACK HANDLE LENGTH = 35 MM
rotary handle padlocking
WITHOUT
presentation of legend
WITH METALLIC LEGEND 0 - L1 - L2 - L3 BLACK MARKING
cam switch function
SWITCH
return
WITHOUT
off position
WITH
switching positions
RIGHT 0 D -90 D -180 D -270 D
IP degree of protection
CONFORMING TO IEC 529
COMPLEMETARY CHARACTERISTICS
switching angle
45
[Ui] rated insulation voltage
690 V DEGREE OF POLLUTION 3 CONFORMING TO IEC 60947-1
[Ithe] conventional enclosed thermal current
16 A
rated operational power in W
1300 W AC-3 / 230 V 1 phase conforming to IEC 947-3
[Ie] rated operational current AC
2 A AT 500 V AC-15 CONFORMING TO IEC 947-5-1
electrical durability
200000 CYCLES AC-23
operating rate
2.5 CYCMN AC-21
short-circuit current
10000 A
short-circuit protection
20 A BY CARTRIDGE FUSE TYPE GG
[Uimp] rated impulse withstand voltage
4 KV IN ISOLATING FUNCTION
contact operation
SLOW-BREAK
positive opening
WITH
electrical connection
CAPTIVE SCREW CLAMP TERMINALS FLEXIBLE 2 X 1.5 MM
mechanical durability
1000000 CYCLES
bezel material
PLASTIC
compatibility code
K2F
