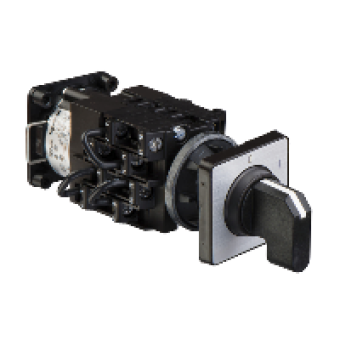

K2H004PC - complete K2 cam switch - 20 A - left: 0° - 315° - Ø 22 mm hole, Schneider Electric
- Product Code: K2H004PC
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY K
product or component type
COMPLETE CAM SWITCH
component name
K2
[Ith] conventional free air thermal current
20 A
sub-assembly composition
CONTACT BLOCK + FRONT MOUNTING
product mounting
FRONT MOUNTING
fixing mode
MULTIFIXING
cam switch head type
WITH FRONT PLATE 45 X 45 MM
type of operator
BLACK HANDLE LENGTH = 35 MM
rotary handle padlocking
WITHOUT
presentation of legend
WITH METALLIC LEGEND 2 - 0 - 1 BLACK MARKING
cam switch function
SWITCH
return
WITHOUT
off position
WITH
poles description
4P
switching positions
LEFT 0 D - 315 D
IP degree of protection
IP40 CONFORMING TO IEC 529
COMPLEMETARY CHARACTERISTICS
switching angle
45
[Ui] rated insulation voltage
690 V DEGREE OF POLLUTION 3 CONFORMING TO IEC 60947-1
[Ithe] conventional enclosed thermal current
16 A
rated operational power in W
1300 W AC-3 / 230 V 1 phase conforming to IEC 947-3
[Ie] rated operational current AC
2 A AT 500 V AC-15 CONFORMING TO IEC 947-5-1
electrical durability
200000 CYCLES AC-23
operating rate
2.5 CYCMN AC-21
short-circuit current
10000 A
short-circuit protection
20 A BY CARTRIDGE FUSE TYPE GG
[Uimp] rated impulse withstand voltage
4 KV IN ISOLATING FUNCTION
contact operation
SLOW-BREAK
positive opening
WITH
electrical connection
CAPTIVE SCREW CLAMP TERMINALS FLEXIBLE 2 X 1.5 MM
mechanical durability
1000000 CYCLES
bezel material
PLASTIC
CAD overall width
45 MM
CAD overall height
50 MM
CAD overall depth
79 MM
compatibility code
K2H
