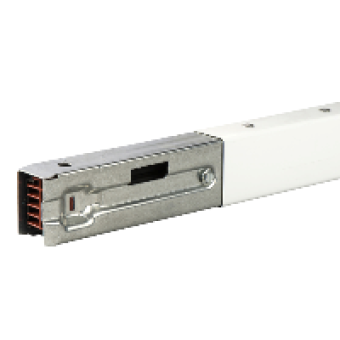

KBA25ED4305W - Canalis - straight length - 25 A - 3 m - 3L+N+PE - white, Schneider Electric
- Product Code: KBA25ED4305W
- Brand: Schneider Electric
- Availability: To be confirmed
- € 53.23 Ex Tax:
MAIN CHARACTERISTICS
range
CANALIS
range of product
CANALIS
product or component type
BUSBAR TRUNKING
device short name
KBA
product compatibility
KBA
COMPLEMETARY CHARACTERISTICS
device application
LIGHTING
radiated magnetic field
2 PT
[Ue] rated operational voltage
230..400 V
[Uimp] rated impulse withstand voltage
4 KV
[Ui] rated insulation voltage
690 V
[Ie] rated operational current
25 A AT 35 DC
network frequency
50 60 HZ
[Icw] rated short-time withstand current
0.44 KA
[Ipk] rated peak withstand current
4.4 KA
thermal stress limit
195 KA.S
THDI
25 A AT 0...15
voltage drop
0.72 V WITH POWER FACTOR = 1 AT 50 HZ WITH 1A FOR 100 M LONG
linear resistance
R20= 6.8 mΩ/m for 20 °C-phase conductor
mounting mode
BY CLIPS
busbar description
STRAIGHT LENGTH
busbar trunking polarity
3L+N+PE
number of tap-off outlets
5
control type
WITHOUT
standards
EN IEC 60439 2
width
3140 MM
depth
30 MM
height
46 MM
length
3 M
colour
RAL 9003 WHITE
product weight
3.1 KG
quantity per set
SET OF 6
The Schneider Electric KBA25ED4305W is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
