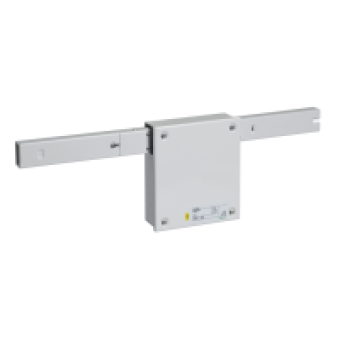

KBA40ABT4W - Canalis - feed unit for KBA - 40 A - central mounting - white, Schneider Electric
- Product Code: KBA40ABT4W
- Brand: Schneider Electric
- Availability: To be confirmed
- € 71.00 Ex Tax:
MAIN CHARACTERISTICS
range
CANALIS
range of product
CANALIS
product or component type
FEED UNIT
BAR MATERIAL
ALUMINIUM
product compatibility
KBA
[Ie] rated operational current
25 A
mounting location
CENTRAL
COMPLEMETARY CHARACTERISTICS
protection type
WITHOUT PROTECTION
[Ue] rated operational voltage
230..400 V
connections - terminals
TERMINAL BLOCK - PG 21 - SCREW CLAMP CONNECTOR FOR 10 MM
control type
COMMUNICATING
number of circuits
1
provided equipment
END COVER
mounting mode
BY SCREWS
mounting support
BUSBAR
standards
IEC 60439-2
width
244 MM
depth
103.5 MM
height
75.5 MM
colour
white : RAL 9003
product weight
500 G
