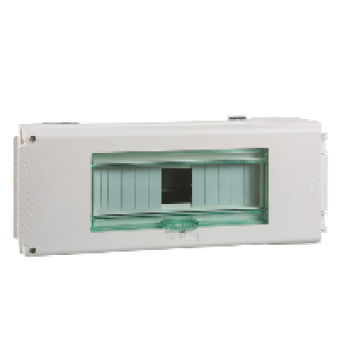

KNB63SM48 - Canalis - tap-off unit for modular devices - 8 modules of 18mm - 63A - 3L+N+PE, Schneider Electric
- Product Code: KNB63SM48
- Brand: Schneider Electric
- Availability: To be confirmed
- € 106.47 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
range compatibility
CANALIS KN
product or component type
TAP-OFF UNIT
busbar trunking compatibility
CANALIS KN BUSBAR TRUNKING WITH PLUG-IN OUTLETS
[Ie] rated operational current
63 A
protection type
CIRCUIT BREAKER MINIATURE CIRCUIT BREAKER MCB
mounting mode
PLUG-IN WITH FIXED POLARITY
tap-off unit polarity
3L+N+PE
COMPLEMETARY CHARACTERISTICS
function available
CIRCUIT BREAKER
device application
LOW POWER DISTRIBUTION
provided equipment
CIRCUIT BREAKER TO BE ORDERED SEPARATELY
[Ue] rated operational voltage
230...500 V DEPENDING ON PROTECTIVE DEVICE
[Uimp] rated impulse withstand voltage
4.6 KV
[Ui] rated insulation voltage
400 V DEPENDING ON PROTECTIVE DEVICE
network frequency
50 60 HZ
electrical connection
TUNNEL TERMINAL - ISO50 - CABLE 25 MM FLEXIBLE
door/cover opening side
RIGHT
tap-off unit disconnection mode
BY OPENING THE DOOR
standards
IEC 61439-6
colour
WHITE RAL 9001
18 mm pitches
8
width
344 MM
depth
106 MM
depth (door open)
432.5 MM
height
165 MM
product weight
2.7 KG
