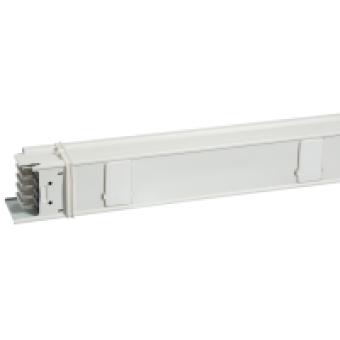

KSA1000ED4206 - Canalis - straight length - 1000A - 6 tap-off outlets - 3L+N+PE - 2m - white, Schneider Electric
- Product Code: KSA1000ED4206
- Brand: Schneider Electric
- Availability: To be confirmed
- € 1,155.62 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
product name
KS
product or component type
BUSBAR TRUNKING
busbar description
DISTRIBUTION LENGTH
device short name
KSA
BAR MATERIAL
ALUMINIUM
device application
MEDIUM POWER DISTRIBUTION
[Ie] rated operational current
1000 A 35 °C
busbar trunking polarity
3L+N+PE
number of tap-off outlets
6
length
2 M
COMPLEMETARY CHARACTERISTICS
[Ue] rated operational voltage
230..690 V
network frequency
50 60 HZ
[Uimp] rated impulse withstand voltage
8 KV
[Ui] rated insulation voltage
690 V
[Icw] rated short-time withstand current
37.4 KA
[Ipk] rated peak withstand current
78.7 KA
electrical connection
LUBRICATED SLIDING CONTACT
radiated magnetic field
1.21 T
thermal stress limit
1758 KA.S
THDI
0...15 1000 A
voltage drop
0.005 V 1 50 HZ WITH 1A FOR 100 M LONG
linear resistance
R20 0.04 MOM 20 C L 5060 HZ
mounting mode
BY SCREWS
neutral position
UP
standards
IEC 60439-2
dimension type
FIX
width
146 MM
depth
113 MM
colour
RAL 9001 : white
product weight
38.5 KG
