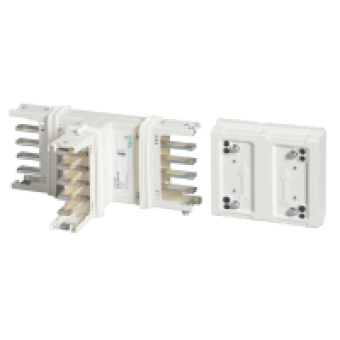

KSA400DTC40 - Canalis - tee for trunking - 400 A - perpendicular mounting, Schneider Electric
- Product Code: KSA400DTC40
- Brand: Schneider Electric
- Availability: To be confirmed
- € 424.02 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
product name
KS
product or component type
TEE
busbar description
STANDARD
BAR MATERIAL
ALUMINIUM
device application
CHANGE DIRECTION
[Ie] rated operational current
400 A 35 °C
direction change type
edgewise to perpendicular - neutral to up
COMPLEMETARY CHARACTERISTICS
[Ue] rated operational voltage
230..690 V
network frequency
50 60 HZ
operating angle
90
mounting location
ON TRUNKING
electrical connection
LUBRICATED SLIDING CONTACT
mounting mode
BY SCREWS
standards
IEC 60439-2
width
146 MM
depth
54 MM
height
165 MM
colour
WHITE RAL 9001
product weight
5.2 KG
The Schneider Electric KSA400DTC40 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
