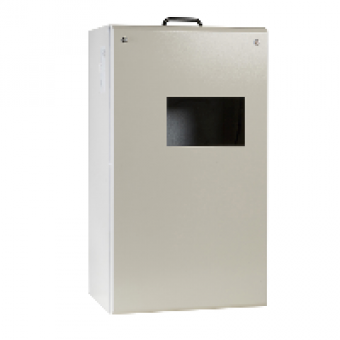

KSB160DB412 - Canalis - tap-off unit for NSX160 with motor mechanism - 160A - 3L+N+PE, Schneider Electric
- Product Code: KSB160DB412
- Brand: Schneider Electric
- Availability: To be confirmed
- € 491.38 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
range compatibility
CANALIS KS
product or component type
TAP-OFF UNIT
busbar trunking compatibility
CANALIS KS BUSBAR TRUNKING WITH PLUG-IN OUTLETS
[Ie] rated operational current
160 A AT 35 DC
protection type
CIRCUIT BREAKER NSX160
provided equipment
CIRCUIT BREAKER TO BE ORDERED SEPARATELY
mounting mode
PLUG-IN WITH FIXED POLARITY
tap-off unit polarity
3L+N+PE
COMPLEMETARY CHARACTERISTICS
function available
CIRCUIT BREAKER
device application
MEDIUM POWER DISTRIBUTION
[Ue] rated operational voltage
230...690 V DEPENDING ON PROTECTIVE DEVICE
[Uimp] rated impulse withstand voltage
6.8 KV
[Ui] rated insulation voltage
400 V DEPENDING ON PROTECTIVE DEVICE
network frequency
50 60 HZ
control type
MOTOR MECHANISM
electrical connection
CRIMP LUG - ISO32 - CABLE 70 MM FLEXIBLE
door/cover opening side
RIGHT
tap-off unit disconnection mode
BY OPENING THE DOOR
standards
IEC 61439-6
colour
WHITE RAL 9001
width
534.5 MM
depth
303 MM
depth (door open)
727.5 MM
product weight
13.5 KG
