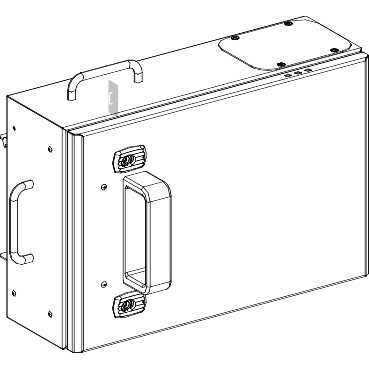

KSB250SE5 - Canalis - tap-off unit with isolator for NF fuse size 1 - 250A - 3L+PEN, Schneider Electric
- Product Code: KSB250SE5
- Brand: Schneider Electric
- Availability: To be confirmed
- € 881.81 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
range compatibility
CANALIS KT
product or component type
TAP-OFF UNIT
busbar trunking compatibility
CANALIS KS BUSBAR TRUNKING WITH PLUG-IN OUTLETS
[Ie] rated operational current
250 A AT 35 C
protection type
FUSE ISOLATOR FOR AM BLADE TYPE FUSE SIZE 1 - 250 A - CONFORMING TO NF STANDARD
provided equipment
FUSE TO BE ORDERED SEPARATELY
mounting mode
PLUG-IN WITH FIXED POLARITY
tap-off unit polarity
3L+PEN
COMPLEMETARY CHARACTERISTICS
function available
FUSE ISOLATOR
device application
MEDIUM POWER DISTRIBUTION
[Ue] rated operational voltage
230...690 V DEPENDING ON PROTECTIVE DEVICE
[Uimp] rated impulse withstand voltage
6.8 KV
[Ui] rated insulation voltage
690 V DEPENDING ON PROTECTIVE DEVICE
network frequency
50 60 HZ
electrical connection
COPPER CABLE LUG - ISO40 - CABLE 150 MM FLEXIBLE
door/cover opening side
RIGHT
tap-off unit disconnection mode
BY OPENING THE DOOR
standards
IEC 61439-1
colour
WHITE RAL 9001
width
630 MM
depth
258 MM
depth (door open)
777 MM
height
432 MM
product weight
20 KG
