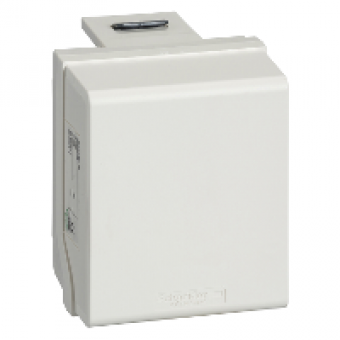

KSB32CF5 - Canalis - tap-off unit for NF fuse size 10 x 38 mm - 32A - 3L+N+PE, Schneider Electric
- Product Code: KSB32CF5
- Brand: Schneider Electric
- Availability: To be confirmed
- € 49.38 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
range compatibility
CANALIS KS
product or component type
TAP-OFF UNIT
busbar trunking compatibility
CANALIS KS BUSBAR TRUNKING WITH PLUG-IN OUTLETS
[Ie] rated operational current
32 A AT 35 C
protection type
FUSE ISOLATOR FOR GG CYLINDRICAL FUSE SIZE 10 X 38 MM - 25 A - CONFORMING TO NF STANDARD
provided equipment
FUSE TO BE ORDERED SEPARATELY
mounting mode
PLUG-IN WITH FIXED POLARITY
tap-off unit polarity
3L+N+PE
COMPLEMETARY CHARACTERISTICS
device application
MEDIUM POWER DISTRIBUTION
[Ue] rated operational voltage
230...690 V DEPENDING ON PROTECTIVE DEVICE
[Uimp] rated impulse withstand voltage
6.8 KV
[Ui] rated insulation voltage
690 V DEPENDING ON PROTECTIVE DEVICE
network frequency
50 60 HZ
electrical connection
CABLE CLAMP TERMINAL - ISO32 - CABLE 6 MM FLEXIBLE
door/cover opening side
FRONT
tap-off unit disconnection mode
BY DRAWING OUT
standards
IEC 61439-1
colour
WHITE RAL 9001
product weight
0.6 KG
