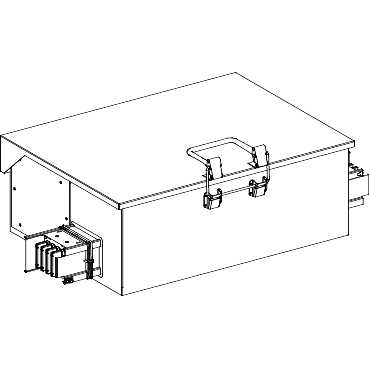

KSB630SE5 - Canalis - tap-off unit with isolator for NF or DIN fuse size 3 - 630A - 3L+PEN, Schneider Electric
- Product Code: KSB630SE5
- Brand: Schneider Electric
- Availability: To be confirmed
- € 2,600.10 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
range compatibility
CANALIS KS
product or component type
TAP-OFF UNIT
busbar trunking compatibility
CANALIS KS BUSBAR TRUNKING WITH PLUG-IN OUTLETS
[Ie] rated operational current
630 A AT 35 C
protection type
FUSE ISOLATOR FOR BLADE TYPE FUSE SIZE 3 - CONFORMING TO NF OR DIN STANDARD
provided equipment
FUSE TO BE ORDERED SEPARATELY
mounting mode
PLUG-IN WITH FIXED POLARITY
tap-off unit polarity
3L+PEN
COMPLEMETARY CHARACTERISTICS
function available
FUSE ISOLATOR
device application
MEDIUM POWER DISTRIBUTION
[Uimp] rated impulse withstand voltage
6.8 KV
[Ui] rated insulation voltage
500 V DEPENDING ON PROTECTIVE DEVICE
network frequency
50 60 HZ
electrical connection
COPPER CABLE LUG - ISO40 - CABLE 480 MM FLEXIBLE
door/cover opening side
RIGHT
tap-off unit disconnection mode
BY OPENING THE DOOR
standards
IEC 61439-1
colour
WHITE RAL 9001
width
1144.5 MM
depth
300 MM
depth (door open)
1106.5 MM
height
611 MM
product weight
59 KG
