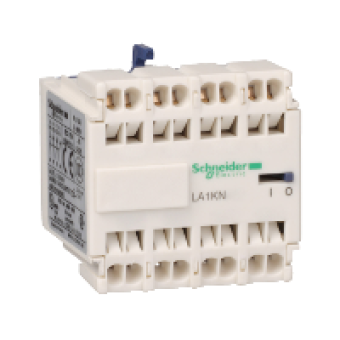

LA1KN043 - TeSys K - Auxiliary contact block - 4 NC - spring terminals, Schneider Electric
- Product Code: LA1KN043
- Brand: Schneider Electric
- Availability: To be confirmed
- € 8.19 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS K
range
TESYS
device short name
LA1
product or component type
AUXILIARY CONTACT BLOCK
product compatibility
CA2K
auxiliary contacts operation
INSTANTANEOUS
pole contact composition
4 NC
Shielding continuity terminal
WITHOUT
connections - terminals
SPRING TERMINALS 1 CABLE 0.75...1.5 MM - CABLE STIFFNESS FLEXIBLE - WITHOUT CABLE END
COMPLEMETARY CHARACTERISTICS
mounting location
FRONT
[Ui] rated insulation voltage
690 V - CONFORMING TO BS 5424
[Ue] rated operational voltage
<= 690 V AC <= 400 HZ
[Ith] conventional free air thermal current
10 A AT <= 50 DC
Irms rated making capacity
110 A AT <= 690 V AC CONFORMING TO IEC 60947
permissible short-time rating
80 A 1 S
associated fuse rating
10 A gG <= 690 V IEC 60947
minimum switching current
5 MA
minimum switching voltage
17 V
non overlap distance
0.5 MM
insulation resistance
> 10 MOHM
depth
35 MM
product weight
0.045 KG
compatibility code
LA1
