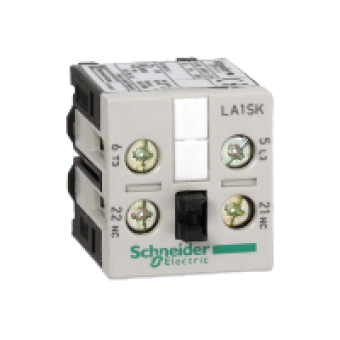

LA1SK01 - TeSys SK - Power add on block - 1 NO Power - 1 NC Signalling, Schneider Electric
- Product Code: LA1SK01
- Brand: Schneider Electric
- Availability: To be confirmed
- € 5.20 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS SK
range
TESYS
product name
TESYS SK
product or component type
POWER ADD-ON BLOCK
device short name
LA1SK
utilisation category for power pole
AC-1
power pole contact composition
1P
pole contact composition
1 NO
[Ue] rated operational voltage
690 V AC <= 400 HZ FOR SIGNALLING CIRCUIT
[Ie] rated operational current
6 A AT <= 440 V AC AC-3 FOR POWER CIRCUIT
auxiliary contact composition
1 NC
[Ith] conventional free air thermal current
12 A AT <= 55 C FOR POWER CIRCUIT
Irms rated making capacity
66 A AT 690 V AC CONFORMING TO IEC 60947
[Icw] rated short-time withstand current
50 A <= 55 DC POWER CIRCUIT
associated fuse rating
16 A GI AT <= 440 V FOR POWER CIRCUIT CONFORMING TO IEC 60947
[Ui] rated insulation voltage
690 V CONFORMING TO IEC 60947
standards
BS 5424
product certifications
CSA
connections - terminals
CONNECTOR 1 CABLES 0.35...6 MM - CABLE STIFFNESS FLEXIBLE - WITH CABLE END
tightening torque
0.8 N.M - ON CONNECTOR - WITH SCREWDRIVER POZIDRIV NO 1
COMPLEMETARY CHARACTERISTICS
signalling circuit frequency
<= 400 HZ
product weight
0.022 KG
compatibility code
LA1SK
