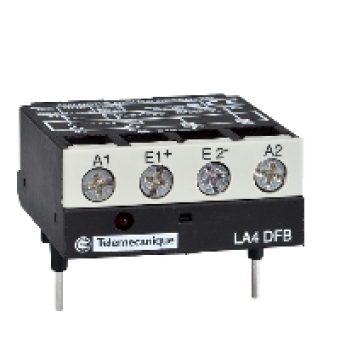

LA4DFB - TeSys D - interface amplifier module - relay - 24 V DC / 250 V AC, Schneider Electric
- Product Code: LA4DFB
- Brand: Schneider Electric
- Availability: To be confirmed
- € 22.52 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS D
range
TESYS
device short name
LA4D
poles description
3P
product or component type
INTERFACE MODULE
product compatibility
LC1D09..D150
COMPLEMETARY CHARACTERISTICS
mounting mode
TOP MOUNTED
technology type
ELECTROMECHANICAL
[Us] rated supply voltage
24 V DC
control circuit voltage limits
17...30 V AT 20 DC DC
[Ui] rated insulation voltage
250 V - FOR CONTROL CIRCUIT - CONFORMING TO IEC 60947-5-1
connections - terminals
control circuit : connector 1 cable 1...2.5 mm² - cable stiffness: flexible - with cable end
[Ue] rated operational voltage
24...250 V AC FOR CONTROL CIRCUIT
current consumption
25 MA 20 DC
current state 0 guaranteed
<= 2 MA
voltage state 0 guaranteed
< 2.4 V
voltage state 1 guaranteed
17 V
electrical durability
10 MCYCLES AT 240 V
local signalling
LED INDICATOR
height
12 MM
product weight
0.05 KG
compatibility code
LA4D
