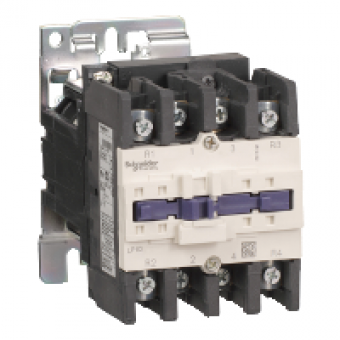

LP1D65008BD - TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 80 A - 24 V DC coil, Schneider Electric
- Product Code: LP1D65008BD
- Brand: Schneider Electric
- Availability: To be confirmed
- € 262.89 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS D
range
TESYS
product name
TESYS D
product or component type
CONTACTOR
device short name
LP1D
contactor application
RESISTIVE LOAD
utilisation category
AC-1
poles description
4P
power pole contact composition
2 NO + 2 NC
[Ue] rated operational voltage
<= 690 V AC 25...400 HZ FOR POWER CIRCUIT
[Ie] rated operational current
80 A <= 60 C AT <= 440 V AC AC-1 FOR POWER CIRCUIT
control circuit type
DC DC STANDARD
[Uc] control circuit voltage
24 V DC
coil type
DC STANDARD
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947
overvoltage category
III
[Ith] conventional free air thermal current
80 A AT <= 60 C FOR POWER CIRCUIT
Irms rated making capacity
1000 A AT 440 V FOR POWER CIRCUIT CONFORMING TO IEC 60947
rated breaking capacity
1000 A AT 440 V FOR POWER CIRCUIT CONFORMING TO IEC 60947
[Icw] rated short-time withstand current
110 A <= 40 C 10 MIN POWER CIRCUIT
associated fuse rating
125 A GG AT <= 690 V COORDINATION TYPE 1 FOR POWER CIRCUIT
average impedance
1.5 MOHM AT 50 HZ - ITH 80 A FOR POWER CIRCUIT
[Ui] rated insulation voltage
690 V FOR POWER CIRCUIT CONFORMING TO IEC 60947-4-1
electrical durability
1.4 MCYCLES 80 A AC-1 AT UE <= 440 V
power dissipation per pole
9.6 W AC-1
safety cover
WITHOUT
mounting support
PLATE
standards
CSA C22.2 NO 14
product certifications
BV
connections - terminals
power circuit : screw clamp terminals 1 cable(s) 1...35 mm² - cable stiffness: flexible - without cable end
tightening torque
power circuit : 8 N.m - on screw clamp terminals - cable 25...35 mm² hexagonal 4 mm
operating time
4..19 MS OPENING
safety reliability level
B10D = 1369863 CYCLES CONTACTOR WITH NOMINAL LOAD CONFORMING TO ENISO 13849-1
mechanical durability
6 MCYCLES
operating rate
3600 CYCH AT <= 60 DC
COMPLEMETARY CHARACTERISTICS
coil technology
BUILT-IN BIDIR PEAK LMTG SPSR
control circuit voltage limits
0.1...0.3 UC DROP-OUT AT 55 C DC
time constant
75 MS
inrush power in W
22 W AT 20 DC
hold-in power consumption in W
22 W AT 20 DC
contact compatibility
M3
compatibility code
LP1D
