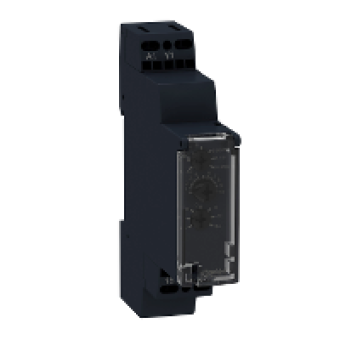

• RE17LMBM - time delay relay 10 functions - 1 s..100 h - 24..240 V - solid state output, Schneider Electric

RE17LMBM - time delay relay 10 functions - 1 s..100 h - 24..240 V - solid state output, Schneider Electric

  • € 33.33 Ex Tax:

MAIN CHARACTERISTICS
range of product
ZELIO TIME
product or component type
MODULAR TIMING RELAY
discrete output type
SOLID STATE
width
17.5 MM
component name
RE17L
time delay type
A
time delay range
0.1...1 S
nominal output current
0.7 A
COMPLEMETARY CHARACTERISTICS
control type
SELECTOR SWITCH ON FRONT PANEL
[Us] rated supply voltage
24...240 V AC at 50/60 Hz
voltage range
0.85..1.1 US
supply frequency
50..60 HZ +- 5
release of input voltage
8 V
control signal pulse width
0.05 S TYPICAL
insulation resistance
100 MOHM AT 500 V DC CONFORMING TO IEC 60664-1
[Uimp] rated impulse withstand voltage
5 KV 1.250 S
power on delay
< 100 MS
connections - terminals
screw terminals, clamping capacity: 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12 (solid) without cable end
tightening torque
0.6...1 N.M CONFORMING TO IEC 60947-1
dielectric strength
2.5 KV 1 MA1 MINUTE 50 HZ CONFORMING TO IEC 61812-1
housing material
SELF-EXTINGUISHING
repeat accuracy
+- 0.5 CONFORMING TO IEC 61812-1
temperature drift
+- 0.05 DC
voltage drift
+ -0.2 PT V
setting accuracy of time delay
+- 10 OF FULL SCALE AT 25 C CONFORMING TO IEC 61812-1
reset time
350 MS ON DE-ENERGISATION TYPICAL
on-load factor
100
power consumption in VA
0...3 VA AT 240 V AC
power consumption in W
<= 1.5 W AT 240 V DC
breaking capacity
0.5 A ACDC CONFORMING TO UL
operating frequency
10 HZ
maximum output current
20 A <= 10 MS
minimum switching current
10 MA
leakage current
< 5 MA
maximum switching voltage
250 V AC
voltage drop
4 V 3-WIRE
electrical durability
100000000 CYCLES
marking
CE
creepage distance
4 KV3 CONFORMING TO IEC 60664-1
safety reliability data
MTTFD = 353.8 YEARS
mounting position
ANY POSITION IN RELATION TO NORMAL VERTICAL MOUNTING PLANE
mounting support
35 MM DIN RAIL CONFORMING TO ENIEC 60715
product weight
0.068 KG
time delay type
A AC AT B BW C D DI H HT
functionality
MULTIFUNCTION
compatibility code
RE17
