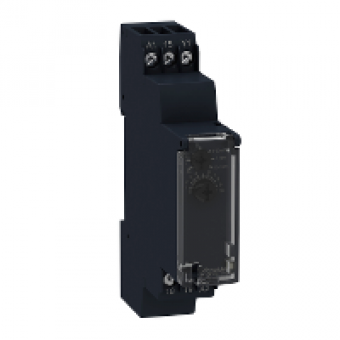

RE17RCMU - off-delay timing relay - 1 s..100 h - 24..240 V AC - 1 OC, Schneider Electric

  • € 23.48 Ex Tax:

MAIN CHARACTERISTICS
range of product
ZELIO TIME
product or component type
MODULAR TIMING RELAY
discrete output type
RELAY
width
17.5 MM
device short name
RE17R
time delay type
C
time delay range
0.1...1 S
nominal output current
8 A
COMPLEMETARY CHARACTERISTICS
contacts type and composition
1 CO
contacts material
CADMIUM FREE
control type
SELECTOR SWITCH ON FRONT PANEL
[Us] rated supply voltage
24...240 V AC at 50/60 Hz
voltage range
0.85..1.1 US
supply frequency
50..60 HZ +- 5
release of input voltage
10 V
connections - terminals
screw terminals, clamping capacity: 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12 (solid) without cable end
tightening torque
0.6...1 N.M CONFORMING TO IEC 60947-1
housing material
SELF-EXTINGUISHING
repeat accuracy
+- 0.5 CONFORMING TO IEC 61812-1
temperature drift
+- 0.05 DC
voltage drift
+ -0.2 PT V
setting accuracy of time delay
+- 10 OF FULL SCALE AT 25 C CONFORMING TO IEC 61812-1
control signal pulse width
100 MS WITH LOAD IN PARALLEL TYPICAL
insulation resistance
100 MOHM AT 500 V DC CONFORMING TO IEC 60664-1
reset time
120 MS ON DE-ENERGISATION TYPICAL
on-load factor
100
power consumption in VA
0...32 VA AT 240 V AC
power consumption in W
<= 0.6 W AT 24 V DC
minimum switching current
10 MA AT 5 V DC
maximum switching current
8 A ACDC
maximum switching voltage
250 V AC
breaking capacity
<= 2000 VA
operating frequency
10 HZ
electrical durability
100000 CYCLES FOR RESISTIVE LOAD 8 A AT 250 V AC MAXIMUM
mechanical durability
10000000 CYCLES
dielectric strength
2.5 KV 1 MA1 MINUTE 50 HZ CONFORMING TO IEC 61812-1
[Uimp] rated impulse withstand voltage
5 KV 1.250 S
power on delay
< 100 MS
marking
CE
creepage distance
4 KV3 CONFORMING TO IEC 60664-1
safety reliability data
MTTFD = 296.8 YEARS
mounting position
ANY POSITION IN RELATION TO NORMAL VERTICAL MOUNTING PLANE
mounting support
35 MM DIN RAIL CONFORMING TO ENIEC 60715
local signalling
LED INDICATOR ON STEADY RELAY ENERGISED NO TIMING IN PROGRESS
product weight
0.07 KG
time delay type
C
functionality
OFF DELAY TIMING
compatibility code
RE17
