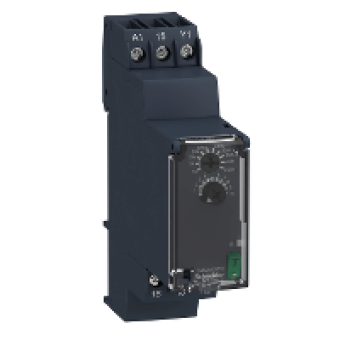

RE22R1AMR - On-delay Timing Relay - 0.05s…300h - 24…240V AC/DC - 1C/O, Schneider Electric
- Product Code: RE22R1AMR
- Brand: Schneider Electric
- Availability: To be confirmed
- € 30.17 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO TIME
product or component type
MODULAR TIMING RELAY
discrete output type
RELAY
device short name
RE22
nominal output current
8 A
COMPLEMETARY CHARACTERISTICS
contacts type and composition
1 CO TIMED CONTACT CADMIUM FREE
time delay type
A
time delay range
0.3...3 S
control type
ROTARY KNOB
[Us] rated supply voltage
24...240 V AC/DC at 50/60 Hz
Release input voltage
<= 2.4 V
voltage range
0.85..1.1 US
supply frequency
50..60 HZ +- 5
connections - terminals
SCREW TERMINALS 1 X 0.5...1 X 3.3 MM AWG 20...AWG 12 SOLID CABLE WITHOUT CABLE END
tightening torque
0.6...1 N.M CONFORMING TO IEC 60947-1
housing material
SELF-EXTINGUISHING
repeat accuracy
+- 0.5 CONFORMING TO IEC 61812-1
temperature drift
+- 0.05 DC
voltage drift
+ -0.2 PT V
setting accuracy of time delay
+- 10 OF FULL SCALE AT 25 C CONFORMING TO IEC 61812-1
Control signal pulse width
100 MS WITH LOAD IN PARALLEL
insulation resistance
100 MOHM AT 500 V DC CONFORMING TO IEC 60664-1
Recovery time
120 ms (on de-energisation)
immunity to microbreaks
<= 10 MS
power consumption in VA
3 VA at 240 V AC
power consumption in W
1.5 W AT 240 V
switching capacity in VA
2000 VA
minimum switching current
10 MA 5 V DC
maximum switching current
8 A
maximum switching voltage
250 V AC
electrical durability
100000 CYCLES FOR 8 A AT 250 V AC-1
mechanical durability
10000000 CYCLES
Rated impulse withstand voltage
5 KV FOR 1.2...50 S CONFORMING TO IEC 60664-1
Power on delay
< 100 MS
creepage distance
4 KV3 CONFORMING TO IEC 60664-1
overvoltage category
III CONFORMING TO IEC 60664-1
safety reliability data
MTTFD = 308.2 YEARS
mounting position
ANY POSITION
mounting support
35 MM DIN RAIL CONFORMING TO ENIEC 60715
status LED
GREEN LED BACKLIGHT STEADY FOR DIAL POINTER INDICATION
width
22.5 MM
product weight
0.1 KG
time delay type
A AW
contacts type and composition
1 C O
functionality
ON DELAY TIING
The Schneider Electric RE22R1AMR is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
