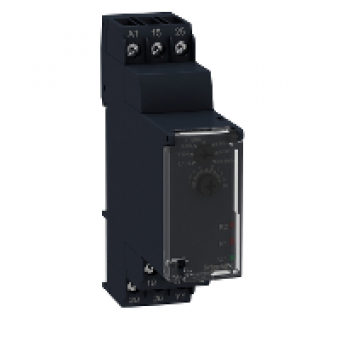

RE22R2AMU - on-delay timing relay - 24VDC/24..240 V AC - 2 C/O, Schneider Electric
- Product Code: RE22R2AMU
- Brand: Schneider Electric
- Availability: To be confirmed
- € 27.63 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO TIME
product or component type
MODULAR TIMING RELAY
discrete output type
RELAY
device short name
RE22
nominal output current
8 A
COMPLEMETARY CHARACTERISTICS
contacts type and composition
2 CO TIMED CONTACT
time delay type
A
time delay range
0.1...1 S
control type
FRONT PANEL ROTARY KNOB
[Us] rated supply voltage
24...240 V AC
voltage range
0.85..1.1 US
supply frequency
50..60 HZ +- 5
connections - terminals
screw terminals : 2 x 1.5 mm² with cable end
tightening torque
0.6...1 N.M CONFORMING TO IEC 60947-1
housing material
SELF-EXTINGUISHING
repeat accuracy
+- 0.5 CONFORMING TO IEC 61812-1
temperature drift
+- 0.05 DC
voltage drift
+ -0.2 PT V
setting accuracy of time delay
+- 10 OF FULL SCALE AT 25 C CONFORMING TO IEC 61812-1
Control signal pulse width
30 MS
insulation resistance
100 MOHM AT 500 V DC CONFORMING TO IEC 60664-1
Recovery time
120 ms (on de-energisation)
immunity to microbreaks
> 10 MS
power consumption in VA
50 VA at 240 V AC
power consumption in W
0.7 W AT 24 V
breaking capacity
2000 VA
minimum switching current
10 MA 5 V
maximum switching current
8 MA
maximum switching voltage
250 V
electrical durability
100000 cycles for 8 A at 250 V AC for resistive load
mechanical durability
10000000 CYCLES
Rated impulse withstand voltage
5 KV FOR 1.2...50 S CONFORMING TO IEC 60664-1
Power on delay
< 100 MS
safety reliability data
MTTFD = 182.6 YEARS
mounting position
ANY POSITION IN RELATION TO NORMAL VERTICAL MOUNTING PLANE
mounting support
35 MM DIN RAIL CONFORMING TO ENIEC 60715
status LED
GREEN LED FLASHING FOR TIMING IN PROGRESS
width
22.5 MM
product weight
0.09 KG
time delay type
A AT
contacts type and composition
2 C O
functionality
ON DELAY TIING
