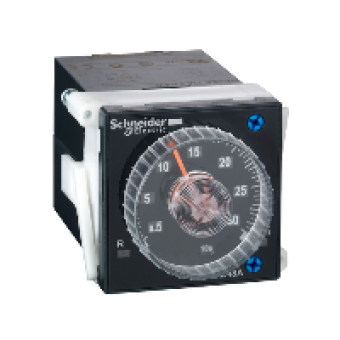

RE48ATM12MW - on-delay timing relay - 0.02 s..300 h - 24..240 V AC - 2 OC, Schneider Electric
- Product Code: RE48ATM12MW
- Brand: Schneider Electric
- Availability: To be confirmed
- € 37.63 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO TIME
product or component type
ELECTRONIC TIMING RELAY
electrical connection
8 PIN PLUG-IN SUB-BASE
discrete output type
RELAY
contacts type and composition
2 CO TIMED CONTACTS AGNI CADMIUM FREE
component name
RE48
time delay type
A
time delay range
0.02...1.2 S
[Us] rated supply voltage
24...240 V ACDC 5060 HZ
voltage range
0.85..1.1 US AC
[In] rated current
5 A
COMPLEMETARY CHARACTERISTICS
product front plate size
48 X 48 MM
control type
SELECTOR SWITCH ON FRONT PANEL
housing material
SELF-EXTINGUISHING
repeat accuracy
+- 0.2 OF THE MAXIMUM SETTING VALUE CONFORMING TO IEC 61812-1
temperature drift
+- 0.02 C OF THE MAXIMUM SETTING VALUE CONFORMING TO IEC 61812-1
voltage drift
+ - 0.2 V OF THE MAXIMUM SETTING VALUE AT 48...240 V
setting accuracy of time delay
+- 5 OF FULL SCALE AT 25 C CONFORMING TO IEC 61812-1
minimum pulse duration
20 MS
reset time
>= 25 MS ON DE-ENERGISATION
pick up duration
55 MS
on-load factor
100
power consumption in VA
1.1 VA AT 24 V
power consumption in W
0.5 W AT 24 V
breaking capacity
1250 VA
minimum switching current
100 MA
maximum switching current
5 A
maximum switching voltage
250 V ACDC
electrical durability
100000 CYCLES
mechanical durability
30000000 CYCLES
output voltage
240 V AT 5 A AC-12
marking
CE
surge withstand
1 KV DIFFERENTIAL MODE CONFORMING TO IEC 61000-4-5 LEVEL 3
mounting support
BASE MOUNTED SOCKET
local signalling
1 LED YELLOW OUTPUT RELAY STATE
product weight
0.14 KG
time delay type
A
functionality
ON DELAY TIING
compatibility code
RE48
