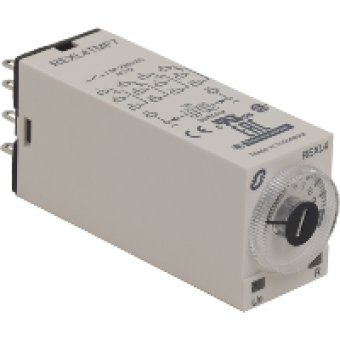

• REXL4TMF7 - on-delay timing relay - 0.1 s..100 h - 120 V AC - 4 OC, Schneider Electric

REXL4TMF7 - on-delay timing relay - 0.1 s..100 h - 120 V AC - 4 OC, Schneider Electric

  • € 26.68 Ex Tax:

MAIN CHARACTERISTICS
range of product
ZELIO TIME
product or component type
MINIATURE TIMING RELAY
fixing mode
PLUG-IN SOCKET
discrete output type
RELAY
contacts type and composition
4 OC
component name
REXL
time delay type
A
time delay range
0.1...1 H
COMPLEMETARY CHARACTERISTICS
contacts material
CADMIUM FREE
[Us] rated supply voltage
120 V AC at 50/60 Hz
voltage range
0.85..1.15 US
[In] rated current
5 A AC
repeat accuracy
+ -0.5 PT
setting accuracy of time delay
10 AT FULL SCALE AT 25 C CONFORMING TO ENIEC 61812-1
temperature drift
0.05 DC
maximum reset time
250 MS AFTER TIME DELAY ON DE-ENERGISATION
voltage drift
+ -0.2 PT V
maximum switching capacity
4 X 5 A
maximum temporary permissible current
10 A FOR < 10 S
minimum switching current
100 MA
electrical durability
100000 CYCLES AT 250 V AC RESISTIVE
mechanical durability
10000000 CYCLES
maximum power consumption
2.6 VA
[Ui] rated insulation voltage
250 V CONFORMING TO IEC 255 GROUP C
output overvoltage protection
2 J
surge withstand
2 KV CONFORMING TO ENIEC 61000-4-5 LEVEL 3
creepage distance
4 KV3 CONFORMING TO IEC 60664-1
local signalling
1 LED RED OUTPUT IN OPERATION
product weight
0.05 KG
time delay type
A
functionality
ON DELAY TIING
