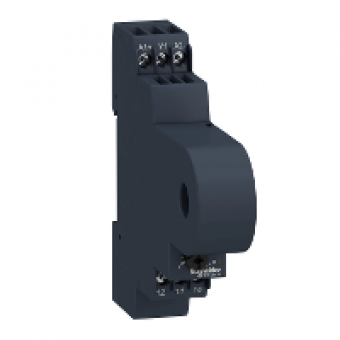

RM17JC00MW - current control relay RM17-J - range: 2..20 A, Schneider Electric
- Product Code: RM17JC00MW
- Brand: Schneider Electric
- Availability: To be confirmed
- € 45.44 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO CONTROL
product or component type
MODULAR MSREMENT + CTRL RELAYS
relay type
CURRENT CONTROL RELAY
relay name
RM17JC
relay monitored parameters
OVERCURRENT DETECTION
time delay
WITHOUT
switching capacity in VA
1250 VA
minimum switching current
10 MA AT 5 V DC
power consumption in VA
<= 3 VA
measurement range
2..20 A CURRENT
utilisation category
AC-12 CONFORMING TO IEC 60947-5-1
COMPLEMETARY CHARACTERISTICS
maximum switching voltage
250 V ACDC
[Us] rated supply voltage
24...240 V ACDC 5060 HZ +- 10
supply voltage limits
20.4..264 V ACDC
operating voltage tolerance
- 15 PT + 10 PT UN
power consumption in W
<= 1 W
control circuit frequency
40..70 HZ SINUSOIDAL
output contacts
1 OC
nominal output current
5 A
measuring cycle
<= 30 MS MEASUREMENT CYCLE AS TRUE RMS VALUE
hysteresis
15 FIXED OF THRESHOLD SETTING
delay at power up
0.5 S
measurement accuracy
+ -10 PT OF THE FULL SCALE VL
repeat accuracy
+- 0.5 FOR INPUT AND MEASUREMENT CIRCUIT
measurement error
+- 0.05 C WITH TEMPERATURE VARIATION
response time
< 200 MS IN THE EVENT OF A FAULT
polarity
YES DC
threshold setting
10..100 PT
input current
100000 MA PERMANENT AT 25 DC
marking
CE 73 23 EEC
overvoltage category
III CONFORMING TO IEC 60664-1
insulation resistance
> 500 MOHM AT 500 V DC CONFORMING TO IEC 60255-5
[Ui] rated insulation voltage
400 V CONFORMING TO IEC 60664-1
insulation
BETWEEN SUPPLY AND MEASUREMENT
operating position
ANY POSITION WITHOUT DERATING
connections - terminals
screw terminals 1 x 0.5...1 x 4 mm² - AWG 20...AWG 11, solid cable without cable end
tightening torque
0.6...1 N.M CONFORMING TO IEC 60947-1
housing material
SELF-EXTINGUISHING PLASTIC
local signalling
LED GREEN FOR POWER ON
mounting support
35 MM SYMMETRICAL DIN RAIL CONFORMING TO ENIEC 60715
electrical durability
100000 CYCLES
mechanical durability
30000000 CYCLES
operating rate
<= 360 OPERATIONSHOUR UNDER FULL LOAD
contacts material
CADMIUM FREE
width
17.5 MM
product weight
0.13 KG
functionality
OVERCURRENT DETECTION
compatibility code
RM17
The Schneider Electric RM17JC00MW is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
