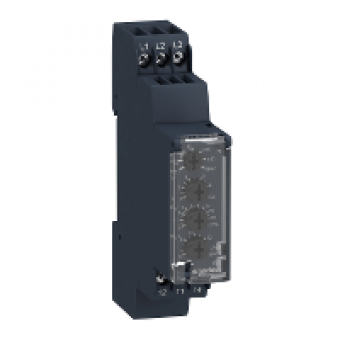

RM17UAS16 - voltage control relay RM17-U - range 20..80 V AC, Schneider Electric
- Product Code: RM17UAS16
- Brand: Schneider Electric
- Availability: To be confirmed
- € 45.44 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO CONTROL
product or component type
MODULAR MSREMENT + CTRL RELAYS
relay type
VOLTAGE CONTROL RELAY
product specific application
FOR SINGLE-PHASE AND DC SUPPLY
relay name
RM17UAS
relay monitored parameters
OVERVLTG OR UNDERVLTG DTTION
time delay
ADJUSTABLE 0.1...10 S 0 + 10 ON CROSSING THE THRESHOLD
switching capacity in VA
1250 VA
minimum switching current
10 MA AT 5 V DC
maximum switching current
5 A ACDC
power consumption in VA
0...3.9 VA AC
measurement range
20..80 V VOLTAGE AC 5060 HZ
utilisation category
AC-12 CONFORMING TO IEC 60947-5-1
COMPLEMETARY CHARACTERISTICS
reset time
1500 MS FOR TIME DELAY
maximum switching voltage
250 V ACDC
[Us] rated supply voltage
24...48 V ACDC 5060 HZ +- 10
supply voltage limits
15..100 V ACDC
power consumption in W
<= 1.6 W DC
immunity to microbreaks
20 MS
control circuit frequency
50..60 HZ + - 10 PT
output contacts
1 OC
nominal output current
5 A
measuring cycle
<= 150 MS MEASUREMENT CYCLE AS TRUE RMS VALUE
hysteresis
5..20 OF THRESHOLD SETTING
delay at power up
<= 100 MS DC
measurement accuracy
+ -10 PT OF THE FULL SCALE VL
repeat accuracy
+- 0.5 FOR INPUT AND MEASUREMENT CIRCUIT
measurement error
< 1 OVER THE WHOLE RANGE WITH VOLTAGE VARIATION
polarity
NON REVERSABLE POL ON DC SPLY
quality labels
CE
overvoltage category
III CONFORMING TO IEC 60664-1
insulation resistance
> 500 MOHM AT 500 V DC CONFORMING TO IEC 60255-5
[Ui] rated insulation voltage
250 V CONFORMING TO IEC 60664-1
operating position
ANY POSITION WITHOUT DERATING
connections - terminals
screw terminals 1 x 0.5...1 x 4 mm² - AWG 20...AWG 11, solid cable without cable end
tightening torque
0.6...1 N.M CONFORMING TO IEC 60947-1
housing material
SELF-EXTINGUISHING PLASTIC
local signalling
LED GREEN FOR POWER ON
mounting support
35 MM SYMMETRICAL DIN RAIL CONFORMING TO ENIEC 60715
electrical durability
100000 CYCLES
mechanical durability
<= 30000000 CYCLES
operating rate
<= 360 OPERATIONSHOUR UNDER FULL LOAD
width
17.5 MM
product weight
0.08 KG
compatibility code
RM17
