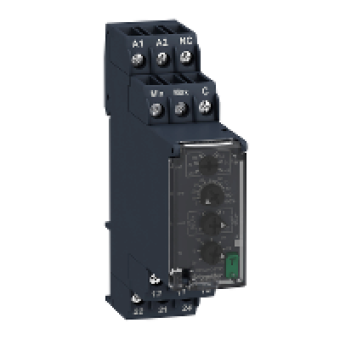

RM22LA32MR - Level control relay RM22-L - 24..240 V AC/DC - 2 C/O, Schneider Electric
- Product Code: RM22LA32MR
- Brand: Schneider Electric
- Availability: To be confirmed
- € 44.44 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO CONTROL
product or component type
MODULAR MSREMENT + CTRL RELAYS
relay type
LEVEL CONTROL RELAY
relay name
RM22L
relay monitored parameters
DETECTION BY RESISTIVE PROBES
time delay type
ADJUSTABLE 0.1...30 S +- 10 OF THE FULL SCALE VALUE ON CROSSING THE THRESHOLD TT
switching capacity in VA
2000 VA
measurement range
250 OHM...1 MOHM
COMPLEMETARY CHARACTERISTICS
reset time
<= 1750 MS
maximum switching voltage
250 V AC
minimum switching current
10 MA AT 5 V DC
maximum switching current
8 A AC
[Us] rated supply voltage
24...240 V ACDC 5060 HZ
supply voltage limits
20.4..264 V ACDC
operating limits
- 15 + 10 UN
power consumption in VA
5 VA AC
power consumption in W
1.5 W DC
output contacts
2 OC
nominal output current
8 A
run-up delay at power-up
< 0.6 S M
maximum electrode voltage
12 V AC
maximum electrode current
1 MA
repeat accuracy
+- 2 TIME DELAY
measurement error
< 1 OVER THE WHOLE RANGE WITH VOLTAGE VARIATION
sensitivity scale
0.25...5 KOHM AT LS LOW SENSITIVITY
sensitivity adjustment
5...100
supply current for sensors
<= 1 MA
max cable distance between devices
1000 M BETWEEN PROBE AND DELAY
cable capacitance
1 NF AT HS HIGH SENSITIVITY FOR PROBE CABLE
overvoltage category
III CONFORMING TO IEC 60664-1
insulation resistance
> 100 MOHM AT 500 V DC CONFORMING TO IEC 60255-27
insulation
BETWEEN SUPPLY AND MEASUREMENT
mounting position
ANY POSITION
connections - terminals
screw terminals 2 x 0.5...2 x 2.5 mm² - AWG 20...AWG 14, solid cable without cable end
tightening torque
0.6...1 N.M CONFORMING TO IEC 60947-1
housing material
SELF-EXTINGUISHING PLASTIC
status LED
LED YELLOW FOR RELAY ON
mounting support
35 MM DIN RAIL CONFORMING TO ENIEC 60715
electrical durability
100000 CYCLES
mechanical durability
10000000 CYCLES
utilisation category
AC-15 CONFORMING TO IEC 60947-5-1
safety reliability data
MTTFD = 182.6 YEARS
contacts material
CADMIUM FREE
width
22.5 MM
product weight
0.11 KG
functionality
RESISTIVE PROBE DETECTION
compatibility code
RM22
