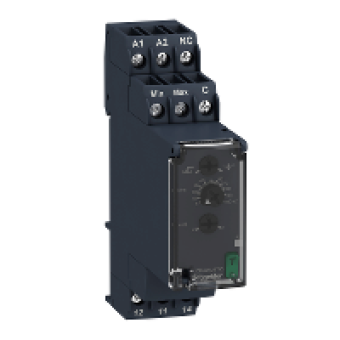

RM22LG11MR - Level control relay RM22-L - 24..240 V AC/DC - 1 C/O, Schneider Electric
- Product Code: RM22LG11MR
- Brand: Schneider Electric
- Availability: To be confirmed
- € 31.39 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO CONTROL
product or component type
MODULAR MSREMENT + CTRL RELAYS
relay type
LEVEL CONTROL RELAY
relay name
RM22L
relay monitored parameters
DETECTION BY RESISTIVE PROBES
time delay type
WITHOUT
switching capacity in VA
2000 VA
measurement range
5...100 KOHM
COMPLEMETARY CHARACTERISTICS
reset time
<= 1750 MS
maximum switching voltage
250 V AC
minimum switching current
10 MA AT 5 V DC
maximum switching current
8 A AC
[Us] rated supply voltage
24...240 V ACDC 5060 HZ
supply voltage limits
20.4..264 V ACDC
operating limits
- 15 + 10 UN
power consumption in VA
5 VA AC
power consumption in W
1.5 W DC
output contacts
2 OC
nominal output current
8 A
run-up delay at power-up
< 0.6 S M
maximum electrode voltage
12 V AC
maximum electrode current
1 MA
repeat accuracy
+- 2 TIME DELAY
measurement error
< 1 OVER THE WHOLE RANGE WITH VOLTAGE VARIATION
sensitivity scale
5...100 KOHM AT ST STANDARD SENSITIVITY
sensitivity adjustment
5...100
supply current for sensors
<= 1 MA
max cable distance between devices
1000 M BETWEEN PROBE AND DELAY
cable capacitance
1 NF AT HS HIGH SENSITIVITY FOR PROBE CABLE
overvoltage category
III CONFORMING TO IEC 60664-1
insulation resistance
> 100 MOHM AT 500 V DC CONFORMING TO IEC 60255-27
insulation
BETWEEN SUPPLY AND MEASUREMENT
mounting position
ANY POSITION
connections - terminals
screw terminals 2 x 0.5...2 x 2.5 mm² - AWG 20...AWG 14, solid cable without cable end
tightening torque
0.6...1 N.M CONFORMING TO IEC 60947-1
housing material
SELF-EXTINGUISHING PLASTIC
status LED
LED YELLOW FOR RELAY ON
mounting support
35 MM DIN RAIL CONFORMING TO ENIEC 60715
electrical durability
100000 CYCLES
mechanical durability
10000000 CYCLES
utilisation category
AC-15 CONFORMING TO IEC 60947-5-1
safety reliability data
MTTFD = 125.5 YEARS
contacts material
CADMIUM FREE
width
22.5 MM
product weight
0.1 KG
functionality
RESISTIVE PROBE DETECTION
compatibility code
RM22
