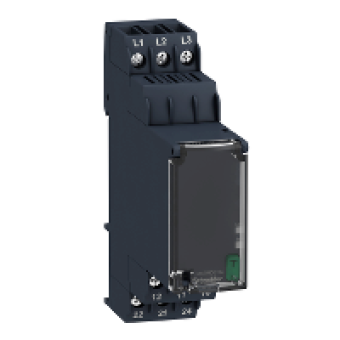

RM22TG20 - three-Phase control relay 183…528Vac 2 C/O, Schneider Electric
- Product Code: RM22TG20
- Brand: Schneider Electric
- Availability: To be confirmed
- € 28.76 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO CONTROL
product or component type
MODULAR MSREMENT + CTRL RELAYS
relay type
CONTROL RELAY
network number of phases
3 PHASES
relay name
RM22TG
relay monitored parameters
PHASE FAILURE DETECTION
time delay type
WITHOUT
switching capacity in VA
2000 VA
measurement range
183..528 V VOLTAGE AC
COMPLEMETARY CHARACTERISTICS
reset time
<= 1500 MS AT MAXIMUM VOLTAGE
maximum switching voltage
250 V AC
minimum switching current
10 MA AT 5 V DC
maximum switching current
8 A AC
[Us] rated supply voltage
208...480 V AC
supply voltage limits
183..528 V AC
operating limits
183...528 V AC
power consumption in VA
15 VA AT 480 V AC 60 HZ
voltage detection threshold
< 100 V AC
supply voltage frequency
50...60 HZ +- 10
output contacts
2 OC
run-up delay at power-up
<= 650 MS
response time
<= 200 MS
overvoltage category
III CONFORMING TO IEC 60664-1
insulation resistance
> 100 MOHM AT 500 V DC CONFORMING TO IEC 60255-27
mounting position
ANY POSITION
connections - terminals
screw terminals 2 x 0.5...2 x 2.5 mm² - AWG 20...AWG 14, solid cable without cable end
tightening torque
0.6...1 N.M CONFORMING TO IEC 60947-1
housing material
SELF-EXTINGUISHING PLASTIC
status LED
LED YELLOW FOR RELAY ON
mounting support
35 MM DIN RAIL CONFORMING TO ENIEC 60715
electrical durability
100000 CYCLES
mechanical durability
10000000 CYCLES
utilisation category
AC-15 CONFORMING TO IEC 60947-5-1
safety reliability data
MTTFD = 924.6 YEARS
contacts material
CADMIUM FREE
width
22.5 MM
product weight
0.09 KG
compatibility code
RM22
