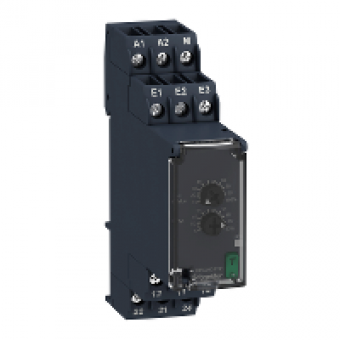

RM22UA22MR - Overvoltage control relay 1V…100Vac/dc 2 C/O, Schneider Electric
- Product Code: RM22UA22MR
- Brand: Schneider Electric
- Availability: To be confirmed
- € 55.85 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO CONTROL
product or component type
MODULAR MSREMENT + CTRL RELAYS
relay type
VOLTAGE CONTROL RELAY
network number of phases
1 PHASE
supply circuit type
DC
relay name
RM22UA
relay monitored parameters
OVERVOLTAGE DETECTION
time delay type
WITHOUT
switching capacity in VA
2000 VA
measurement range
1...100 V VOLTAGE ACDC 5060 HZ
COMPLEMETARY CHARACTERISTICS
reset time
<= 1500 MS AT MAXIMUM VOLTAGE
maximum switching voltage
250 V AC
minimum switching current
10 MA AT 5 V DC
maximum switching current
8 A AC
[Us] rated supply voltage
24...240 V ACDC 5060 HZ
supply voltage limits
20.4..264 V ACDC
power consumption in VA
3.5 VA AC
power consumption in W
1.5 W DC
supply voltage frequency
40...70 HZ +- 10
resistance across terminals
110 KOHM AT E2-M TERMINALS
output contacts
2 OC
hysteresis
5...50 ADJUSTABLE OF THRESHOLD SETTING
run-up delay at power-up
<= 600 MS
measuring cycle
100 MS MEASUREMENT CYCLE AS TRUE RMS VALUE
repeat accuracy
+- 0.5 INPUT AND MEASUREMENT CIRCUIT
measurement error
< 1 OVER THE WHOLE RANGE WITH VOLTAGE VARIATION
response time
<= 500 MS
overvoltage category
III CONFORMING TO IEC 60664-1
insulation resistance
> 100 MOHM AT 500 V DC CONFORMING TO IEC 60255-27
insulation
BETWEEN SUPPLY AND MEASUREMENT
mounting position
ANY POSITION
connections - terminals
screw terminals 2 x 0.5...2 x 2.5 mm² - AWG 20...AWG 14, solid cable without cable end
tightening torque
0.6...1 N.M CONFORMING TO IEC 60947-1
housing material
SELF-EXTINGUISHING PLASTIC
status LED
LED YELLOW FOR RELAY ON
mounting support
35 MM DIN RAIL CONFORMING TO ENIEC 60715
electrical durability
100000 CYCLES
mechanical durability
10000000 CYCLES
utilisation category
AC-15 CONFORMING TO IEC 60947-5-1
safety reliability data
MTTFD = 308.2 YEARS
contacts material
CADMIUM FREE
width
22.5 MM
product weight
0.11 KG
compatibility code
RM22
