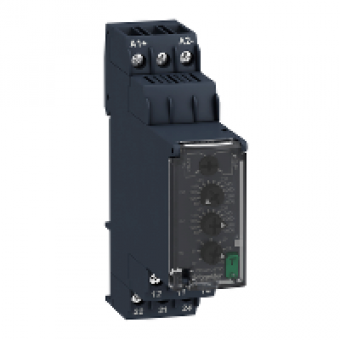

RM22UB34 - Voltage control relay 80V…300Vac/dc 2 C/O, Schneider Electric
- Product Code: RM22UB34
- Brand: Schneider Electric
- Availability: To be confirmed
- € 57.50 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO CONTROL
product or component type
MODULAR MSREMENT + CTRL RELAYS
relay type
VOLTAGE CONTROL RELAY
network number of phases
1 PHASE
supply circuit type
DC
relay name
RM22UA
relay monitored parameters
OVERVLTG+UNDERVLTG DETECTION
time delay type
ADJUSTABLE 0.1...30 S +- 10 OF THE FULL SCALE VALUE ON CROSSING THE THRESHOLD TT
switching capacity in VA
2000 VA
measurement range
80...300 V VOLTAGE ACDC 5060 HZ
COMPLEMETARY CHARACTERISTICS
reset time
<= 1500 MS AT MAXIMUM VOLTAGE
maximum switching voltage
250 V AC
minimum switching current
10 MA AT 5 V DC
maximum switching current
8 A AC
[Us] rated supply voltage
110...240 V AC 5060 HZ
supply voltage limits
60...280 V AC
power consumption in VA
5 VA AC
power consumption in W
2 W DC
supply voltage frequency
50...60 HZ +- 10
output contacts
2 OC
nominal output current
8 A
hysteresis
5...50 ADJUSTABLE OF THRESHOLD SETTING
run-up delay at power-up
<= 600 MS
measuring cycle
250 MS MEASUREMENT CYCLE AS TRUE RMS VALUE
repeat accuracy
+- 0.5 INPUT AND MEASUREMENT CIRCUIT
measurement error
< 1 OVER THE WHOLE RANGE WITH VOLTAGE VARIATION
response time
<= 500 MS
overvoltage category
III CONFORMING TO IEC 60664-1
insulation resistance
> 100 MOHM AT 500 V DC CONFORMING TO IEC 60255-27
mounting position
ANY POSITION
connections - terminals
screw terminals 2 x 0.5...2 x 2.5 mm² - AWG 20...AWG 14, solid cable without cable end
tightening torque
0.6...1 N.M CONFORMING TO IEC 60947-1
housing material
SELF-EXTINGUISHING PLASTIC
status LED
LED YELLOW FOR RELAY ON
mounting support
35 MM DIN RAIL CONFORMING TO ENIEC 60715
electrical durability
100000 CYCLES
mechanical durability
10000000 CYCLES
utilisation category
AC-15 CONFORMING TO IEC 60947-5-1
safety reliability data
MTTFD = 433.7 YEARS
contacts material
CADMIUM FREE
width
22.5 MM
product weight
0.09 KG
functionality
OVERVLTG AND UNDERVLTG DTTION
compatibility code
RM22
The Schneider Electric RM22UB34 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
