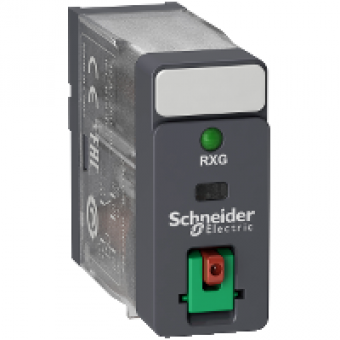

RXG12F7 - interface plug-in relay - Zelio RXG - 1C/O standard -120VAC-10A-with LTB and LED, Schneider Electric
- Product Code: RXG12F7
- Brand: Schneider Electric
- Availability: To be confirmed
- € 5.36 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO RELAY
series name
INTERFACE RELAY
product or component type
PLUG-IN RELAY
device short name
RXG
contacts type and composition
1 CO
COMPLEMETARY CHARACTERISTICS
status LED
WITH
contacts material
SILVER ALLOY AGSNO2IN2O3
Maximum contact resistance
100 MOHM
[Ithe] conventional enclosed thermal current
10 A TEMPERATURE -40...55 C
[Ie] rated operational current
10 A at 30 V DC conforming to UL
maximum switching voltage
250 V AC
load current
10 A AT 250 V AC
maximum switching capacity
2500 VA
minimum switching capacity
500 mW at 100 mA, 5 V DC
operating rate
<= 1800 CYCLESHOUR UNDER LOAD
utilisation coefficient
20 PT
mechanical durability
10000000 CYCLES
electrical durability
100000 CYCLES FOR NO RESISTIVE LOAD AT 55 C
[Ui] rated insulation voltage
250 V CONFORMING TO IEC
[Uimp] rated impulse withstand voltage
6 kV for 1.2/50 µs
dielectric strength
1000 V AC MICRO DISCONNECTION BETWEEN CONTACTS
Coil resistance
6300 OHM +- 10
insulation resistance
1000 MOhm at 500 V DC
mounting position
ANY POSITION
Average consumption in VA
0.82 VA AT 60 HZ
drop-out voltage threshold
>= 0.3 Uc AC
control circuit voltage limits
0.8...1.1 Uc, AC
Coil insulation class
CLASS F
Operate time
20 MS
Release time
20 MS
[Uc] control circuit voltage
120 V AC
safety reliability data
B10D = 100000
colour of cover
STANDARD
control type
LOCKABLE TEST BUTTON
local signalling
FLAG
product weight
0.02 KG
device presentation
COMPLETE PRODUCT
