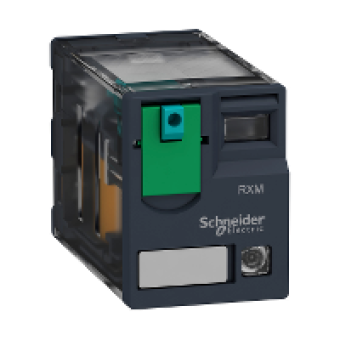

RXM2AB2BD - Miniature Plug-in relay - Zelio RXM 2 C/O 24 V DC 12 A with LED, Schneider Electric
- Product Code: RXM2AB2BD
- Brand: Schneider Electric
- Availability: To be confirmed
- € 3.90 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO RELAY
series name
MINIATURE
product or component type
PLUG-IN RELAY
device short name
RXM
contacts type and composition
2 OC
[Uc] control circuit voltage
24 V DC
[Ithe] conventional enclosed thermal current
12 A AT -40...55 DC
status LED
WITH
control type
LOCKABLE TEST BUTTON
utilisation coefficient
20 PT
COMPLEMETARY CHARACTERISTICS
shape of pin
FLAT
[Ui] rated insulation voltage
250 V CONFORMING TO IEC
[Uimp] rated impulse withstand voltage
4 kV for 1.2/50 µs
contacts material
AGNI
[Ie] rated operational current
12 A at 28 V DC (NO) conforming to IEC
maximum switching voltage
250 V conforming to IEC
resistive rated load
12 A AT 250 V AC
maximum switching capacity
3000 VA/336 W
minimum switching capacity
170 mW at 10 mA, 17 V
operating rate
<= 1200 CYCLESHOUR UNDER LOAD
mechanical durability
10000000 CYCLES
electrical durability
100000 CYCLES FOR RESISTIVE LOAD
average coil consumption in W
0.9 W
drop-out voltage threshold
>= 0.1 UC
operate time
20 MS
release time
20 MS
average coil resistance
650 Ohm at 20 °C +/- 10 %
rated operational voltage limits
19.2..26.4 V DC
safety reliability data
B10D = 100000
protection category
RT I
operating position
ANY POSITION
product weight
0.037 KG
device presentation
COMPLETE PRODUCT
compatibility code
RXM
