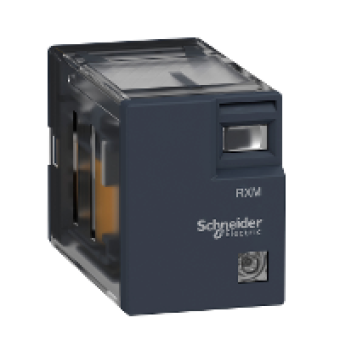

RXM4LB2BD - miniature plug-in relay - Zelio RXM4L - 4 C/O - 24 V DC - 3 A - with LED, Schneider Electric
- Product Code: RXM4LB2BD
- Brand: Schneider Electric
- Availability: To be confirmed
- € 2.63 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO RELAY
series name
MINIATURE
product or component type
PLUG-IN RELAY
device short name
RXM
coil interference suppression
WITHOUT
utilisation coefficient
20 PT
sale per indivisible quantity
10
COMPLEMETARY CHARACTERISTICS
contact operation
STANDARD
[Uc] control circuit voltage
24 V DC
[Ithe] conventional enclosed thermal current
3 A AT -40...55 DC
status LED
WITH
control type
WITHOUT PUSHBUTTON
[Ui] rated insulation voltage
250 V CONFORMING TO IEC
[Uimp] rated impulse withstand voltage
3.6 KV 1.250 S CONFORMING TO IEC 61810-7
contacts material
SILVER ALLOY AG NI
[Ie] rated operational current
3 A AC-1DC-1 NO CONFORMING TO IEC
minimum switching current
10 MA
maximum switching voltage
250 V AC
minimum switching voltage
17 V
load current
3 A AT 250 V AC
maximum switching capacity
750 VA NETWORK AC
minimum switching capacity
170 MW
operating rate
<= 1200 CYCLESHOUR UNDER LOAD
mechanical durability
10000000 CYCLES
electrical durability
100000 CYCLES FOR RESISTIVE LOAD
average coil consumption
0.9 W DC
drop-out voltage threshold
DC >= 0.1 UC
operating time
20 MS BETWEEN COIL DE-ENERGISATION AND MAKING OF THE OFF-DELAY CONTACT
average resistance
630 OHM NETWORK DC AT 20 C +- 10
rated operational voltage limits
19.2..26.4 V DC
protection category
RT I
operating position
ANY POSITION
CAD overall width
21 MM
CAD overall height
27 MM
CAD overall depth
46 MM
product weight
0.034 KG
safety reliability data
B10D = 100000
compatibility code
RXM
