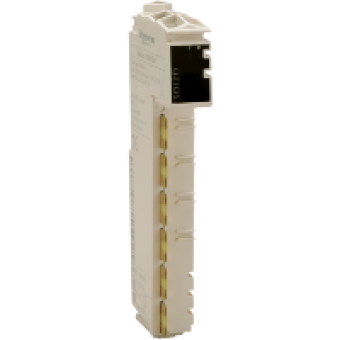

TM5SDI4D - digital input module - 4I - 24V DC sink - 3 wires, Schneider Electric
- Product Code: TM5SDI4D
- Brand: Schneider Electric
- Availability: To be confirmed
- € 39.78 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON TM5
product or component type
DISCRETE INPUT MODULE
discrete input number
4
discrete input voltage
24 V
COMPLEMETARY CHARACTERISTICS
range compatibility
MODICON LMC058
product compatibility
MOTION CONTROLLER
discrete input voltage type
DC
input voltage limits
20.4..28.8 V
discrete input logic
SINK
discrete input current
3.75 MA
input impedance
6.4 KOHM
colour
WHITE
voltage state 0 guaranteed
<= 5 V
voltage state 1 guaranteed
>= 15 V
input filtering
<= 25 MS CONFIGURABLE BY SOFTWARE
protection type
OVERLOAD PROTECTION
isolation
NO INSULATION BETWEEN CHANNELS
voltage drop
<= 2 V AT 500 MA FOR SENSOR SUPPLY
supply current for sensors
500 MA
current consumption
28 MA 5 V DC BUS
power dissipation in W
<= 0.73 W
local signalling
1 LED GREEN FOR POWER SUPPLY
electrical connection
3 WIRES
marking
CE
product weight
0.025 KG
