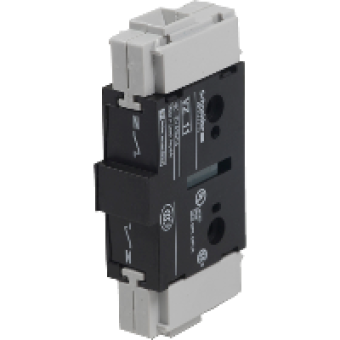

VZ11 - TeSys VARIO - additional neutral block - 40 A - for V02...V2, Schneider Electric
- Product Code: VZ11
- Brand: Schneider Electric
- Availability: To be confirmed
- € 5.27 Ex Tax:
MAIN CHARACTERISTICS
range
TESYS
device short name
VZ
product or component type
ADDITIONAL NEUTRAL BLOCK
performance level
HIGH PERFORMANCE
poles description
1N
contacts type and composition
1 NO
contact operation
EARLY MAKE LATE BREAK
product compatibility
V02
range compatibility
TESYS VARIO SWITCH DISCONNECTOR
network type
AC
network frequency
50 60 HZ
COMPLEMETARY CHARACTERISTICS
mounting location
LEFT
[Ue] rated operational voltage
690 V AC 5060 HZ
[Uimp] rated impulse withstand voltage
6 KV
[Ith] conventional free air thermal current
40 A
mechanical durability
100000 CYCLES
electrical durability
30000 cycles DC-1...5
connections - terminals
SCREW CLAMP TERMINALS CABLE 6 MM - CABLE STIFFNESS FLEXIBLE - WITH CABLE END
tightening torque
2.1 N.m - on screw clamp terminals
height
74 MM
width
16 MM
depth
35 MM
product weight
0.05 KG
compatibility code
NEUTRAL POLE MODULE
The Schneider Electric VZ11 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
