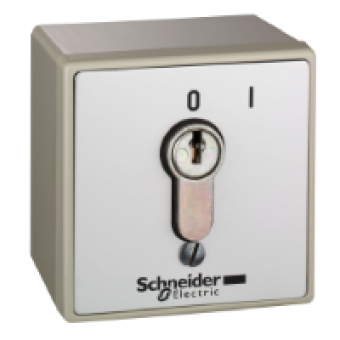

XAPS11111N - vandal resistant surface mounted control station - XAP-S - lock, Schneider Electric
- Product Code: XAPS11111N
- Brand: Schneider Electric
- Availability: To be confirmed
- € 44.30 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XAPS
product or component type
KEY OPERATED CONTROL STATION
device short name
XAPS
product mounting
SURFACE MOUNTED
control station composition
1 KEY SELECTOR SWITCH STAY PUT 1 NO O-I
operator position information
2 POSITIONS
key withdrawal position
LEFT-HAND
contact operation
SLOW-BREAK
COMPLEMETARY CHARACTERISTICS
cable entry
1 KNOCK-OUT FOR CABLE ENTRY 17 MM
product weight
0.83 KG
connections - terminals
SCREW CLAMP TERMINALS <= 2 X 1.5 MM WITH CABLE END ENIEC 60947-1
tightening torque
0.8..1.2 N.M ENIEC 60947-1
shape of screw head
CROSS PHILIPS NO 1
contacts material
SILVER ALLOY AG NI
resistance across terminals
<= 25 MOHM
short-circuit protection
10 A CARTRIDGE FUSE GG IEC 60947-5-1
[Ith] conventional free air thermal current
10 A IEC 60947-5-1
[Ui] rated insulation voltage
600 V 3 IEC 60947-1
[Uimp] rated impulse withstand voltage
6 KV IEC 60947-1
[Ie] rated operational current
3 A 240 V AC-15 A600 IEC 60947-5-1
compatibility code
XAPS
