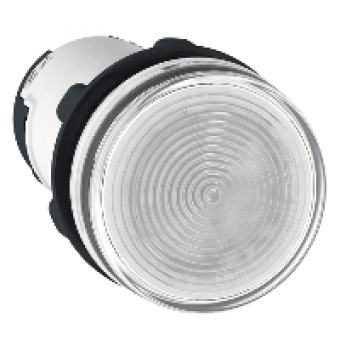

XB7EV77P - round pilot light Ø 22 - clear - bulb BA 9s - 230 V - screw clamp terminals, Schneider Electric
- Product Code: XB7EV77P
- Brand: Schneider Electric
- Availability: To be confirmed
- € 5.71 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB7
product or component type
MONOLITHIC PILOT LIGHT
device short name
XB7
mounting diameter
22 MM
sale per indivisible quantity
10
shape of signaling unit head
ROUND
cap/operator or lens colour
CLEAR
light source
INCANDESCENT
bulb base
BA 9S
light block supply
DIRECT THROUGH RESISTOR 2.6 W - 130 V
[Us] rated supply voltage
230 V AC 5060 HZ
COMPLEMETARY CHARACTERISTICS
height
29 MM
width
29 MM
depth
54 MM
terminals description ISO n°1
X1-X2PL
product weight
0.02 KG
device mounting
FIXING HOLE 22.5 MM 22.3 +0.40 CONFORMING TO ENIEC 60947-5-1
fixing center
>= 30 X 40 MM ON SUPPORT PANEL METAL THICKNESS 1...6 MM
fixing mode
FIXING NUT BENEATH HEAD RECOMMENDED TORQUE 2...2.4 N.M
connections - terminals
FASTON CONNECTORS 6.35 X 0.8 MM CONFORMING TO ENIEC 60947-1
tightening torque
0.8...1.2 N.M CONFORMING TO EN 60947-1
shape of screw head
CROSS HEAD COMPATIBLE WITH JIS NO 1 SCREWDRIVER
[Ui] rated insulation voltage
250 V DEGREE OF POLLUTION 3 CONFORMING TO ENIEC 60947-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO ENIEC 60947-1
signalling type
STEADY
supply voltage limits
195..264 V AC
service life
2000 H AT RATED VOLTAGE AND 25 C
compatibility code
XB7
