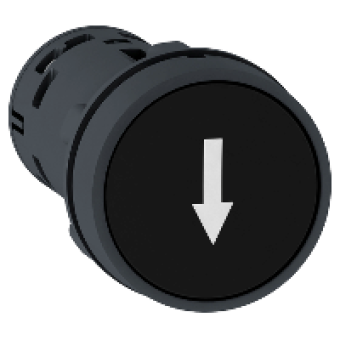

XB7NA21343 - PB - Spring Rtn black - 1NO -WHITE DOWN ARROW, Schneider Electric
- Product Code: XB7NA21343
- Brand: Schneider Electric
- Availability: To be confirmed
- € 3.95 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB7
product or component type
MONOLITHIC PUSHBUTTON
device short name
XB7
mounting diameter
22 MM
sale per indivisible quantity
10
IP degree of protection
IP20 REAR FACE CONFORMING TO IEC 60529
shape of signaling unit head
ROUND
type of operator
SPRING RETURN
operator profile
BLACK FLUSH WHITE DOWN ARROW
contacts type and composition
1 NO
connections - terminals
screw clamp terminals : <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
COMPLEMETARY CHARACTERISTICS
CAD overall width
29 MM
CAD overall height
29 MM
CAD overall depth
51.5 MM
terminals description ISO n°1
13-14NO
product weight
0.021 KG
device mounting
FIXING HOLE 22.5 MM 22.3 +0.40 CONFORMING TO ENIEC 60947-1
fixing center
>= 30 X 40 MM ON SUPPORT PANEL METAL THICKNESS 1...6 MM
fixing mode
FIXING NUT BENEATH HEAD RECOMMENDED TORQUE 2...2.4 N.M
contact operation
SLOW-BREAK
positive opening
WITH ONLY NO POSITIVE OPENING
mechanical durability
1000000 CYCLES
tightening torque
0.8...1.2 N.M CONFORMING TO EN 60947-1
shape of screw head
CROSS HEAD COMPATIBLE WITH JIS NO 1 SCREWDRIVER
short-circuit protection
4 A CARTRIDGE FUSE TYPE GG CONFORMING TO ENIEC 60947-5-1
[Ui] rated insulation voltage
250 V DEGREE OF POLLUTION 3 CONFORMING TO ENIEC 60947-1
[Uimp] rated impulse withstand voltage
4 KV CONFORMING TO ENIEC 60947-1
[Ie] rated operational current
0.1 A AT 250 V DC-13 R300 CONFORMING TO ENIEC 60947-5-1
electrical durability
1000000 CYCLES DC-13 0.3 A AT 24 V OPERATING RATE 216000 CYCMN LOAD FACTOR 0.5 CONFORMING TO ENIEC 60947-5-1 APPENDIX C
electrical reliability
λ <= 10exp(-6) at 17 V, 5 mA conforming to EN/IEC 60947-5-4
compatibility code
XB7
The Schneider Electric XB7NA21343 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
