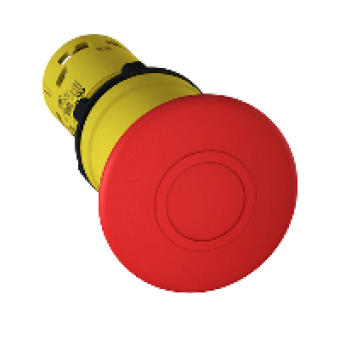

XB7NT842 - Emergency stop Ø22 - red mushroom Ø40mm - trigger latching push-pull 1NC, Schneider Electric
- Product Code: XB7NT842
- Brand: Schneider Electric
- Availability: To be confirmed
- € 7.86 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB7
product or component type
EMERGENCY STOP MONOLITHIC PB
device short name
XB7
mounting diameter
22 MM
sale per indivisible quantity
10
shape of signaling unit head
ROUND
type of operator
MECHANICAL LATCHING
reset
PUSH-PULL
operator profile
RED MUSHROOM 40 MM UNMARKED
contacts type and composition
1 NC
connections - terminals
screw clamp terminals : <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
COMPLEMETARY CHARACTERISTICS
CAD overall width
40 MM
CAD overall height
40 MM
CAD overall depth
72 MM
terminals description ISO n°1
11-12NC
product weight
0.035 KG
device mounting
FIXING HOLE 22.5 MM 22.3 +0.40 CONFORMING TO ENIEC 60947-1
fixing center
>= 30 X 40 MM ON SUPPORT PANEL METAL THICKNESS 1...6 MM
fixing mode
FIXING NUT BENEATH HEAD RECOMMENDED TORQUE 2...2.4 N.M
contact operation
SNAP ACTION
contacts usage
STANDARD
positive opening
WITH POSITIVE OPENING CONFORMING TO ENIEC 60947-5-1 APPENDIX K
mechanical durability
100000 CYCLES
tightening torque
0.8...1.2 N.M CONFORMING TO EN 60947-1
shape of screw head
CROSS HEAD COMPATIBLE WITH JIS NO 1 SCREWDRIVER
short-circuit protection
4 A CARTRIDGE FUSE TYPE GG CONFORMING TO ENIEC 60947-5-1
[Ui] rated insulation voltage
250 V DEGREE OF POLLUTION 3 CONFORMING TO ENIEC 60947-1
[Uimp] rated impulse withstand voltage
4 KV CONFORMING TO ENIEC 60947-1
[Ie] rated operational current
0.1 A AT 250 V DC-13 R300 CONFORMING TO ENIEC 60947-5-1
electrical durability
1000000 CYCLES DC-13 0.3 A AT 24 V OPERATING RATE 216000 CYCMN LOAD FACTOR 0.5 CONFORMING TO ENIEC 60947-5-1 APPENDIX C
electrical reliability
λ < 5 x 10exp(-7) at 17 V, 5 mA conforming to IEC 60947-5-4
compatibility code
XB7
