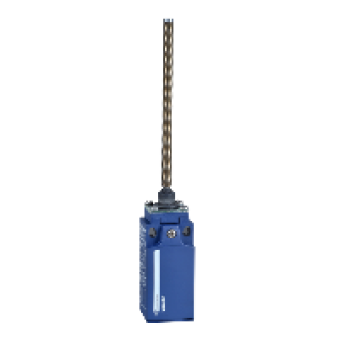

XCKN2108P20 - limit switch XCKN - spring rod lever nitrile boot - 1NC+1NO - snap - M20, Schneider Electric
- Product Code: XCKN2108P20
- Brand: Schneider Electric
- Availability: To be confirmed
- € 12.18 Ex Tax:
MAIN CHARACTERISTICS
range of product
OSISENSE XC
series name
STANDARD FORMAT
product or component type
LIMIT SWITCH
device short name
XCKN
sensor design
COMPACT
body type
FIXED
head type
MULTI-DIRECTIONAL HEAD
material
PLASTIC
body material
PLASTIC
head material
PLASTIC
fixing mode
BY THE BODY
movement of operating head
MULTI-DIRECTIONAL
type of operator
SPRING RETURN SPRING ROD
type of approach
MULTI-DIRECTIONAL APPROACH
cable entry
1 ENTRY TAPPED FOR M20 X 1.5 CABLE GLAND CABLE OUTER DIAMETER 7...13 MM
number of poles
2
contacts type and composition
1 NC + 1 NO
contact operation
SNAP ACTION
COMPLEMETARY CHARACTERISTICS
switch actuation
BY ANY MOVING PART
electrical connection
SCREW-CLAMP TERMINALS CLAMPING CAPACITY 1 X 0.34...2 X 1.5 MM
contacts insulation form
ZB
positive opening
WITHOUT
minimum torque for tripping
0.13 N.M
maximum actuation speed
1 MS
contact code designation
A300 AC-15 UE = 240 V IE = 3 A ITHE = 10 A CONFORMING TO ENIEC 60947-5-1 APPENDIX A
[Ui] rated insulation voltage
300 V CONFORMING TO UL 508
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60664
short-circuit protection
10 A CARTRIDGE FUSE TYPE GG
electrical durability
5000000 CYCLES DC-13 120 V 4 W OPERATING RATE <= 60 CYCMN LOAD FACTOR 0.5 CONFORMING TO IEC 60947-5-1 APPENDIX C
mechanical durability
5000000 CYCLES
width
30 MM
height
183 MM
depth
30 MM
product weight
0.175 KG
terminals description ISO n°1
13-14NO
device presentation
COMPLETE PRODUCT
compatibility code
XCKN
specific application
COMPACT BASIC
